Главная Каталог продукции Toolunited 16 201-02 - Square insert SNEW09T3ADFR H01

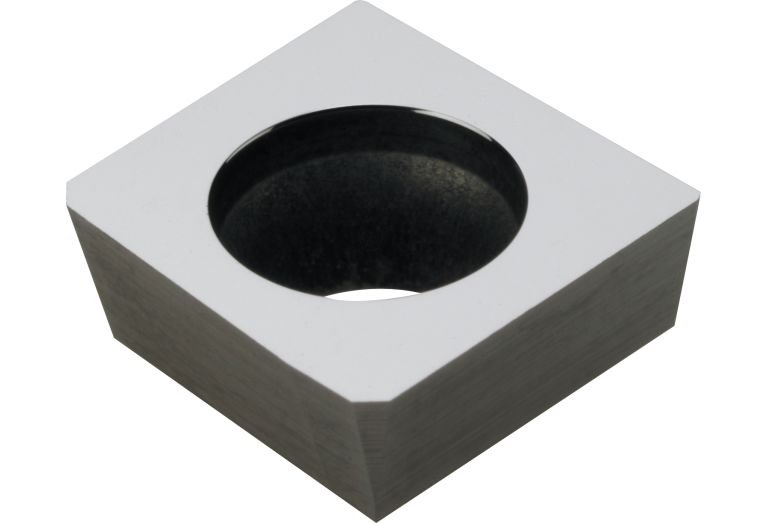

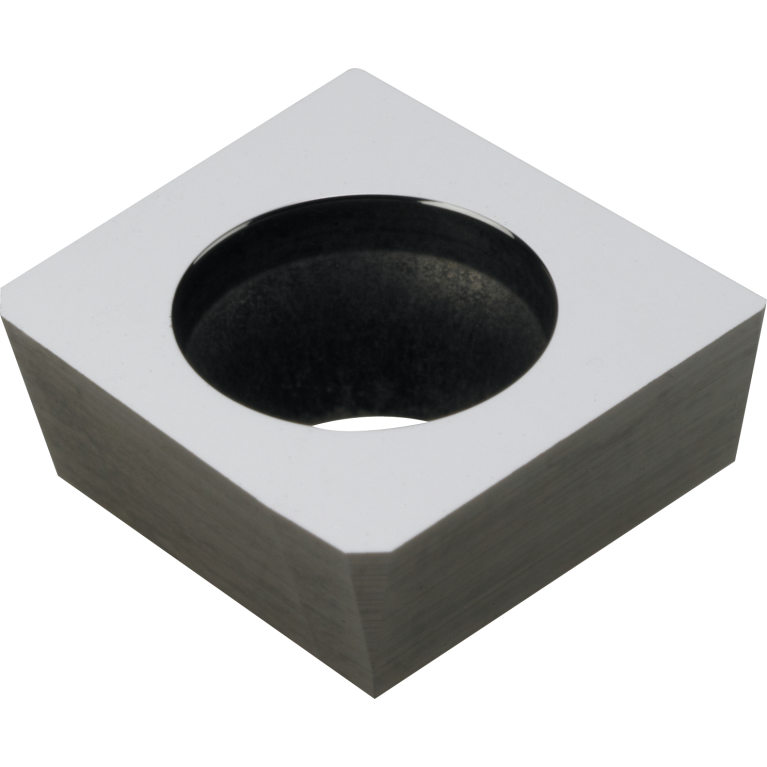

SNEW09T3ADFR H01

Артикул: 1-03-018414

В наличии

В корзину

Описание

Характеристики

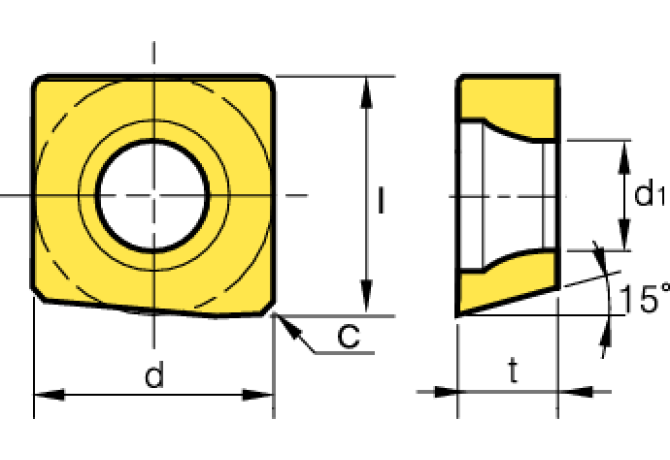

AN Clearance angle major

0 Degree

AS Clearance angle wiper edge

15 Degree

CB Chip breaker face count

0 - Without chip breaker

CECC Cutting edge condition code

F - Sharpedged

CHW Corner chamfer width

0.5 mm

COATN Coating / Покрытие

ohne

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

6/4/2014

DIN

SN09T3AD3R

EPSR Insert included angle

90 Degree

FamilyProducts

Milling inserts

GRDMFG Grade manufacturers designation

H01

GRDPRIO Standard designation of the grade main application

Carbide

IC Inscribed circle diameter

9.525 mm

ID Technical product number

1-03-018414

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

9.525 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN09T3AD3R

Name Identifying order number

SNEW09T3ADFR H01

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

SNEW09T3ADFR

TCINS Tolerance class insert

Working process

F - Milling
