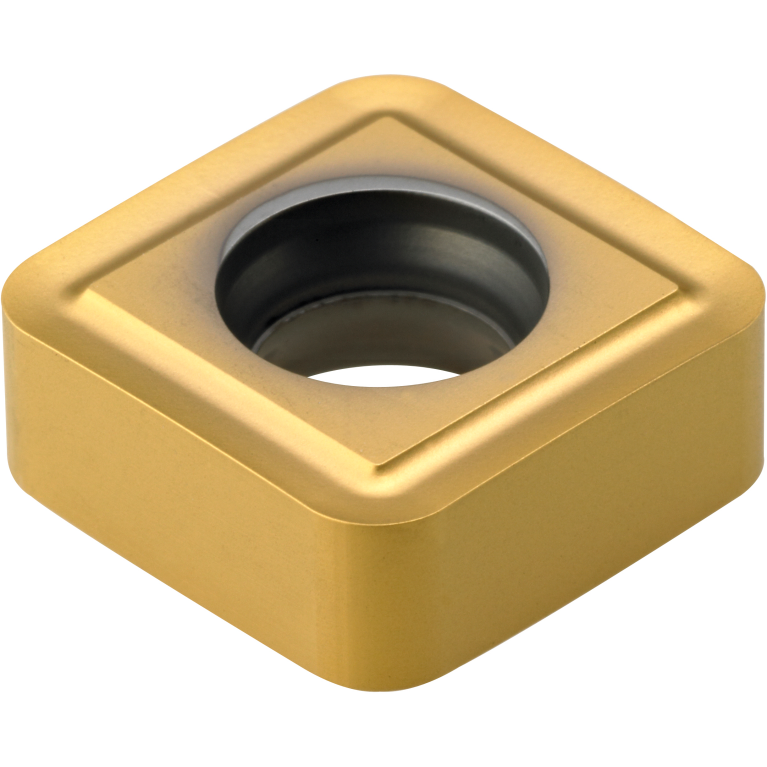

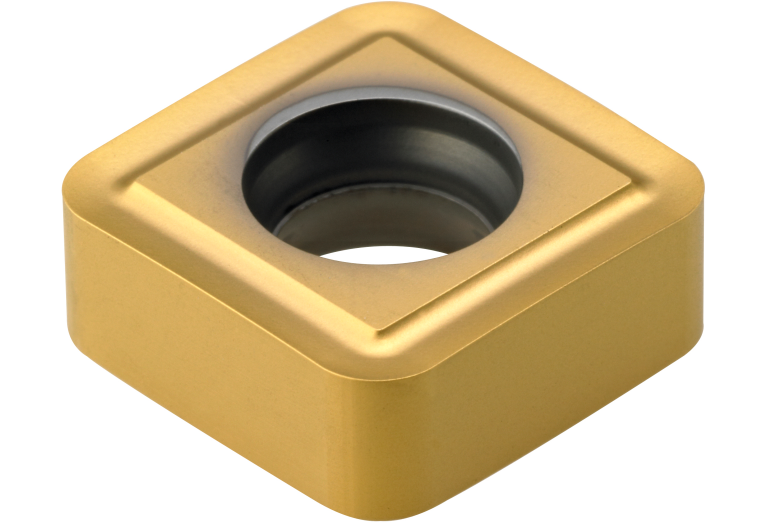

SNEU120420-MF PC3500

Артикул: 1-02-035803

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

Coated

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

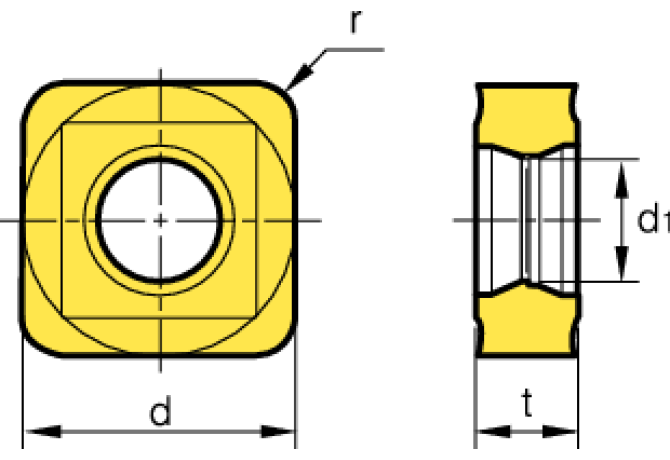

D1 Fixing hole diameter

5.7 mm

Delivery state valid from

6/4/2014

DIN

SN1204 3N

EPSR Insert included angle

90 Degree

FamilyProducts

Milling inserts

GRDMFG Grade manufacturers designation

PC3500

IC Inscribed circle diameter

12.7 mm

ID Technical product number

1-02-035803

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN1204 3N

Name Identifying order number

SNEU120420-MF PC3500

RE Corner radius

2 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SNEU120420

STDDESAnsi Standard designation ANSI

SNEU435

TCINS Tolerance class insert

Working process

F - Milling
