Главная Каталог продукции Toolunited 16 201-02 - Square insert SNCN1204ENN G10

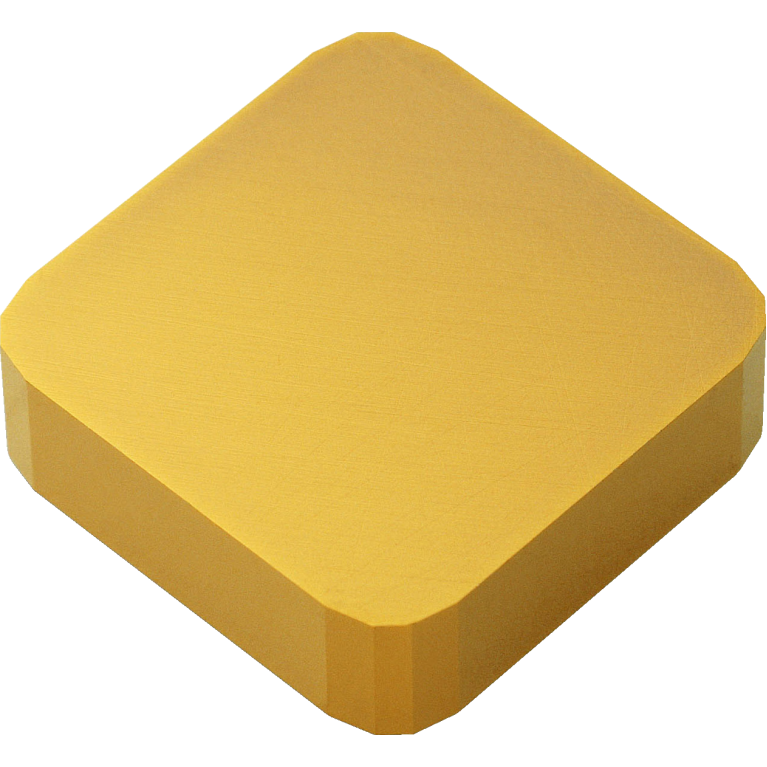

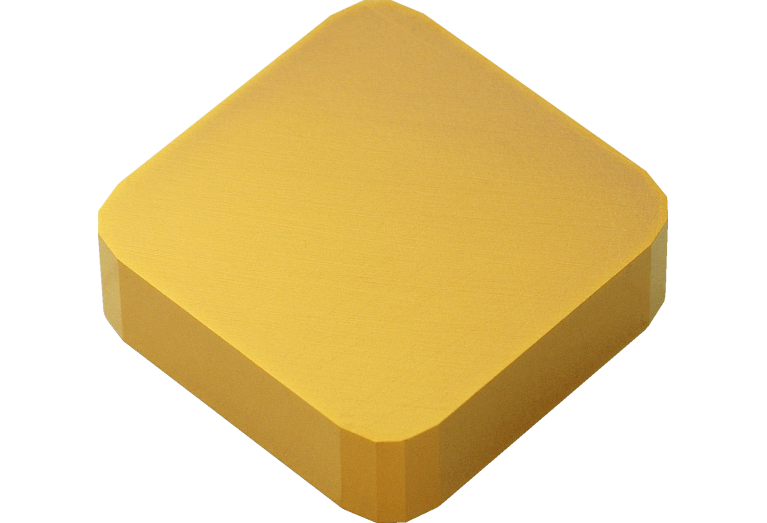

SNCN1204ENN G10

Артикул: 1-03-001481

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

AS Clearance angle wiper edge

0 Degree

BS Wiper edge length

1.4 mm

CB Chip breaker face count

0 - Without chip breaker

CHW Corner chamfer width

1 mm

COATN Coating / Покрытие

ohne

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

6/4/2014

DIN

SN1204EN1N

EPSR Insert included angle

90 Degree

FamilyProducts

Milling inserts

GRDMFG Grade manufacturers designation

G10

GRDPRIO Standard designation of the grade main application

Carbide

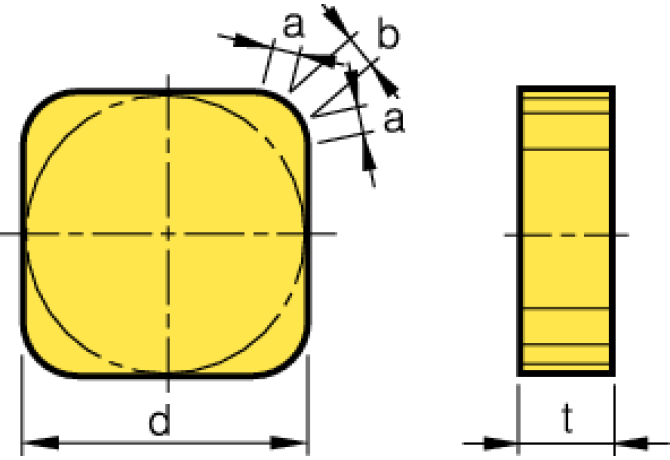

IC Inscribed circle diameter

12.7 mm

ID Technical product number

1-03-001481

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

75 Degree

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN1204EN1N

Name Identifying order number

SNCN1204ENN G10

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SNCN1204ENN

TCINS Tolerance class insert

Working process

F - Milling
