Главная Каталог продукции Toolunited 16 201-02 - Square insert SHLT060204N IN2010

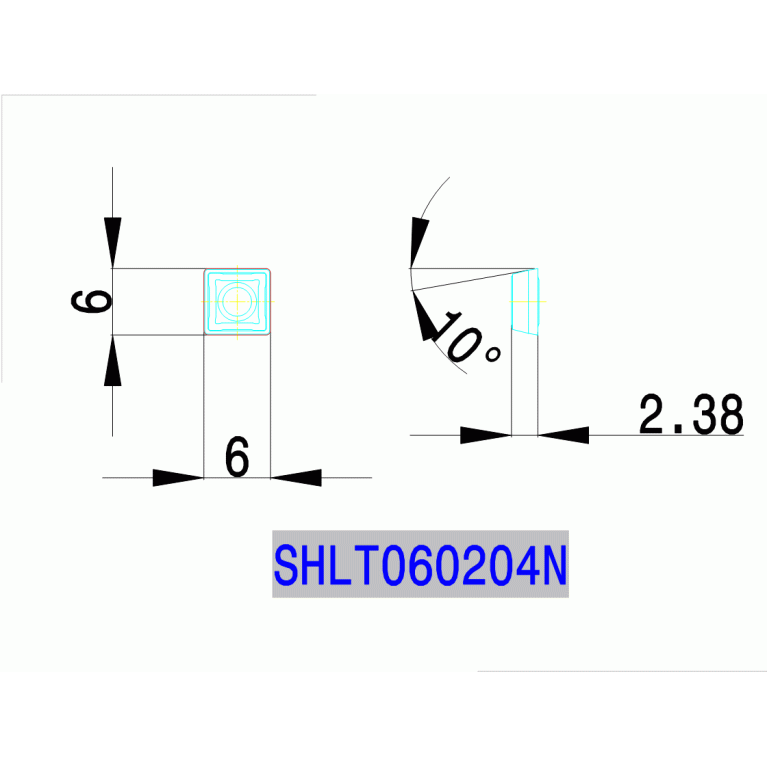

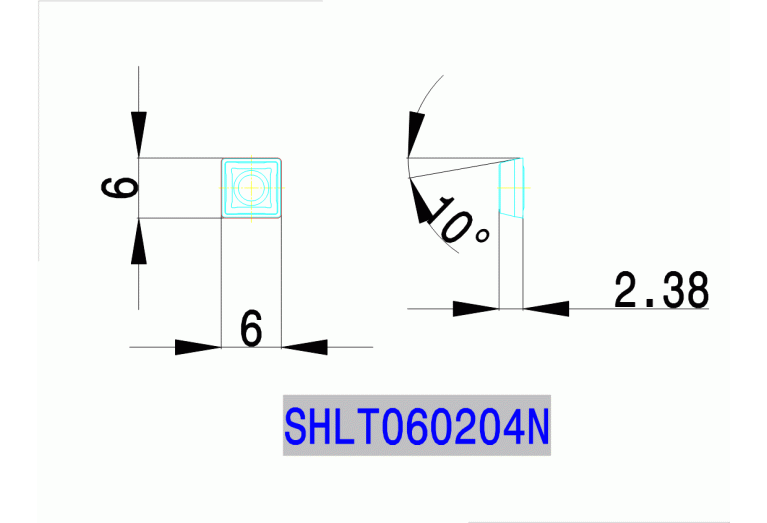

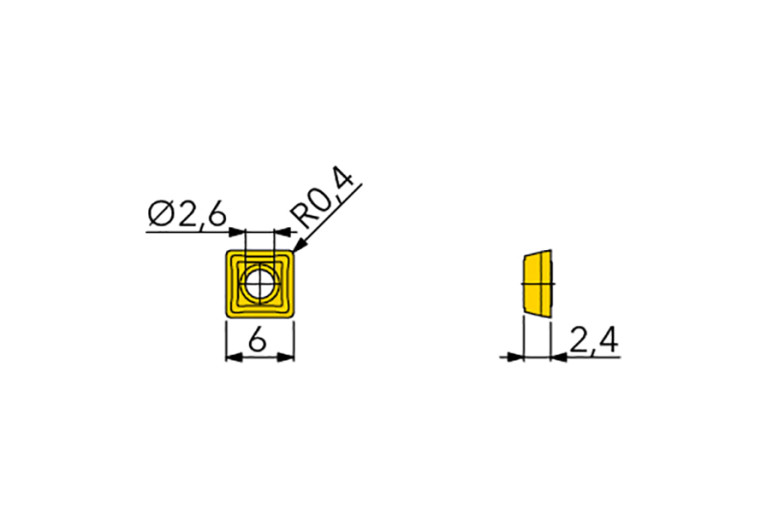

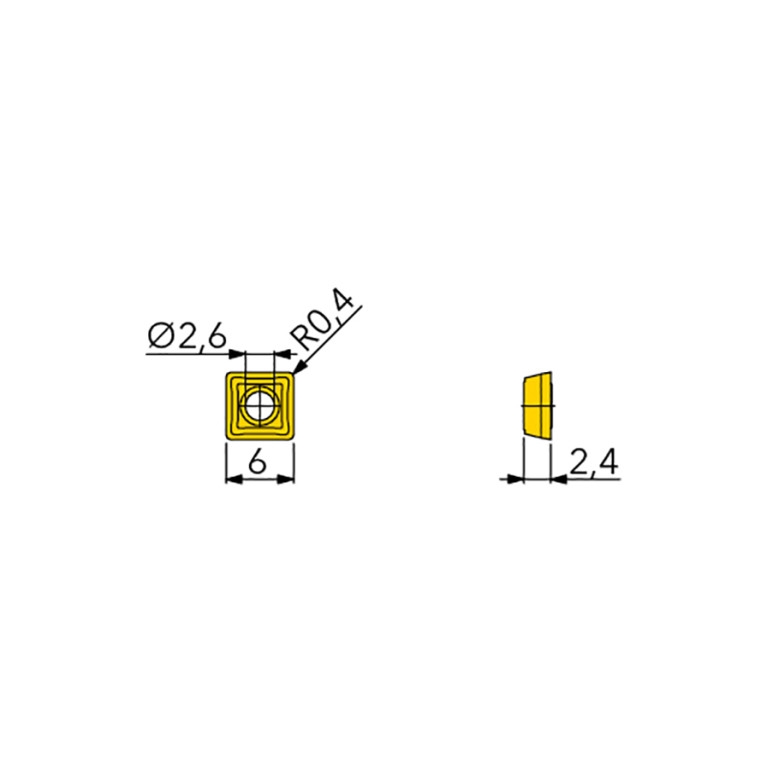

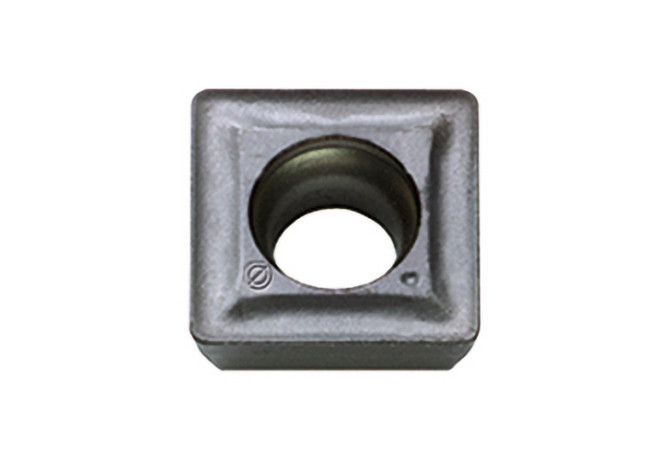

SHLT060204N IN2010

Артикул: 5101048

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

10 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating / Покрытие

TiAIN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

2.6 mm

Delivery state

LL - Stock limited

DIN

SH0602 3N

EPSR Insert included angle

90 Degree

FamilyProducts

insert, four-edged, cast iron geometry R0,4

GRD2ND Standard designation of the grade 2nd application

K10-K30

GRDMFG Grade manufacturers designation

IN2010

IC Inscribed circle diameter

6 mm

ID Technical product number

5101048

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

5.2 mm

LE Cutting edge effective length

5.6 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SH0602 3N

Name Identifying order number

SHLT060204N IN2010

RE Corner radius

0.4 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

SHLT060204

STDDESAnsi Standard designation ANSI

SHLT21.51

TCINS Tolerance class insert

Working process

No working processes available
