Главная Каталог продукции Toolunited 16 201-02 - Square insert SFKN1504AZFN H10E

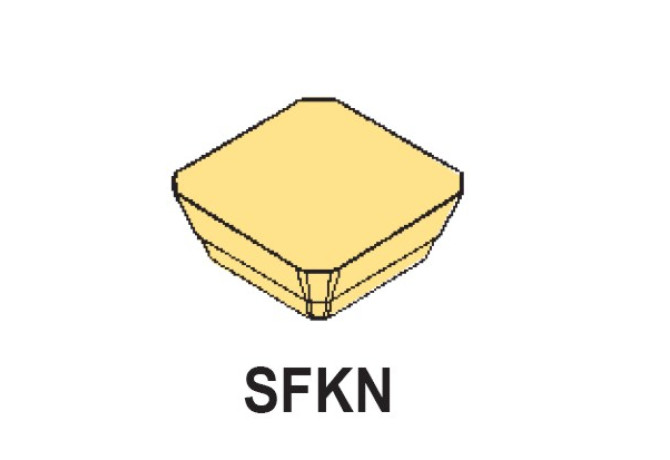

SFKN1504AZFN H10E

Артикул: SFKN1504AZFN H10E

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

25 Degree

CB Chip breaker face count

0 - Without chip breaker

CECC Cutting edge condition code

F - Sharpedged

CHW Corner chamfer width

2.2 mm

COMPC Company code

SU - Sumitomo

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/16/2007

DIN

SF1504AZ1N

EPSR Insert included angle

90 Degree

FamilyProducts

insert for milling of steel or cast iron, positive

GRDMFG Grade manufacturers designation

H10E

GRDPRIO Standard designation of the grade main application

HW-K20

IC Inscribed circle diameter

15.875 mm

ID Technical product number

SFKN1504AZFN H10E

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KCH Corner chamfer angle

45 Degree

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

15.875 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SF1504AZ1N

Name Identifying order number

SFKN1504AZFN H10E

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SFKN1504AZFN

TCINS Tolerance class insert

K - Cold formed

Working process

No working processes available
