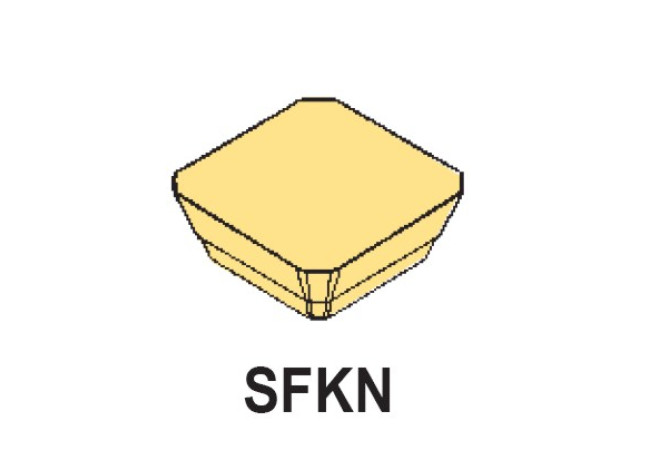

SFKN12T3AZFN EH20Z

Артикул: SFKN12T3AZFN EH20Z

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

25 Degree

CB Chip breaker face count

0 - Without chip breaker

CECC Cutting edge condition code

F - Sharpedged

CHW Corner chamfer width

1.4 mm

COATN Coating / Покрытие

TiN+TiCN

COMPC Company code

SU - Sumitomo

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

2/24/2021

DIN

SF12T3 1N

EPSR Insert included angle

90 Degree

FamilyProducts

Sumitomo indexable insert for milling

GRD2ND Standard designation of the grade 2nd application

HC-K20

GRD3RD Standard designation of the grade 3rd application

HC-M20

GRDMFG Grade manufacturers designation

EH20Z

GRDPRIO Standard designation of the grade main application

HC-K10

IC Inscribed circle diameter

12.7 mm

ID Technical product number

SFKN12T3AZFN EH20Z

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SF12T3 1N

M M-dimension

0.013 mm

Name Identifying order number

SFKN12T3AZFN EH20Z

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

SFKN12T3AZFN

TCINS Tolerance class insert

K - Cold formed

Working process

No working processes available
