Главная Каталог продукции Toolunited 16 201-02 - Square insert SEPT13T3AGENMMTN6525

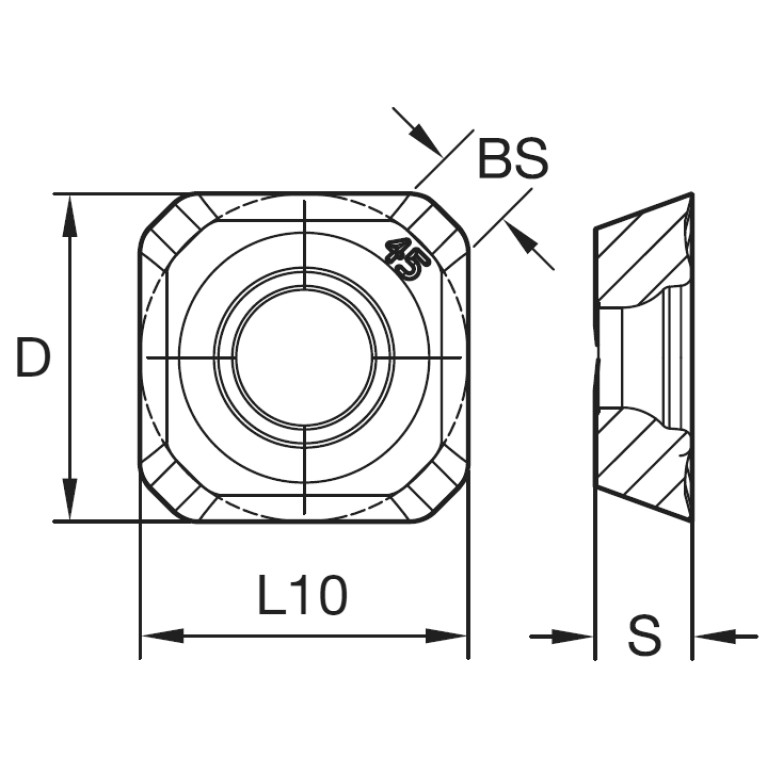

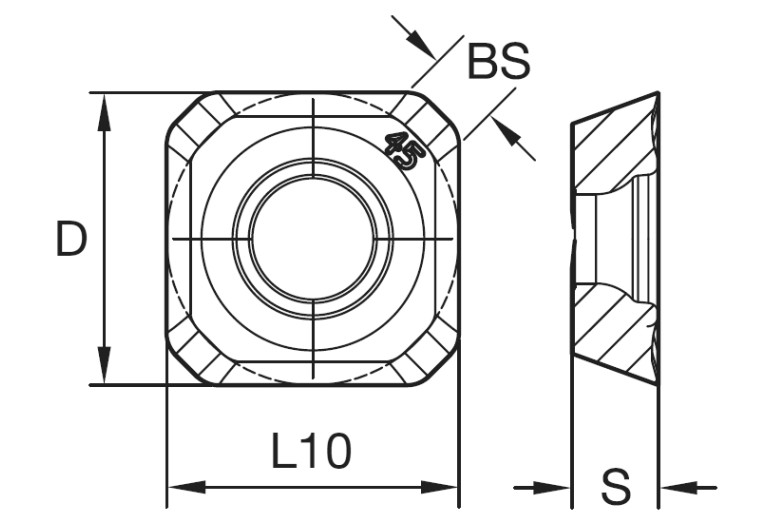

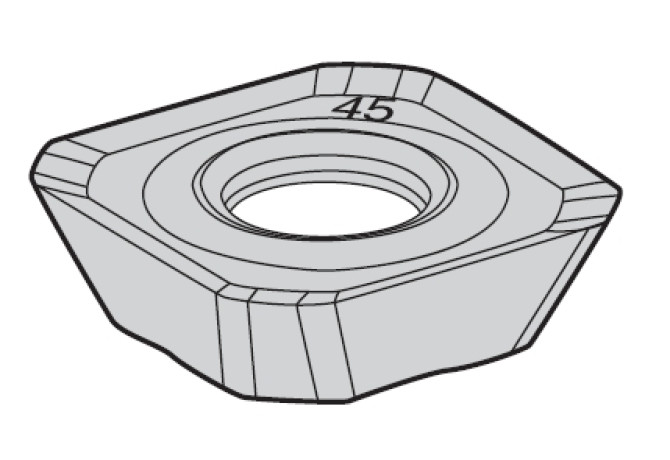

SEPT13T3AGENMMTN6525

Артикул: 4072174

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

20 Degree

AS Clearance angle wiper edge

30 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COMPC Company code

WI - Widia

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

6/5/2012

DIN

SE13T3AG3N

EPSR Insert included angle

90 Degree

FamilyProducts

indexable insert for milling, SEPT-MM

GRDMFG Grade manufacturers designation

TN6525

IC Inscribed circle diameter

13.41 mm

ID Technical product number

4072174

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

13.41 mm

LE Cutting edge effective length

2.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SE13T3AG3N

Materials

P,M,K

Name Identifying order number

SEPT13T3AGENMMTN6525

S Insert thickness

3.96 mm

S1 Insert thickness total

3.96 mm

STDDES Standard designation

SEPT13T3AGENMM

STDDESAnsi Standard designation ANSI

SEPT13T3AGENMM

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
