Главная Каталог продукции Toolunited 16 201-02 - Square insert SEMT0903AGSN-G H1

SEMT0903AGSN-G H1

Артикул: SEMT0903AGSN-G H1

В наличии

В корзину

Описание

Характеристики

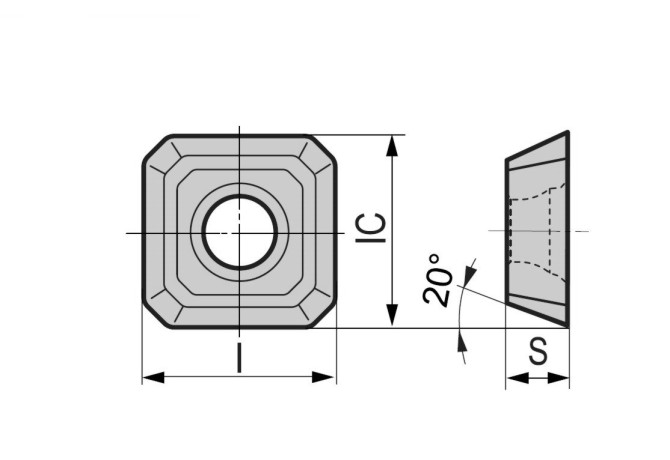

AN Clearance angle major

20 Degree

AS Clearance angle wiper edge

30 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

S - Chamfered and rounded

COMPC Company code

SU - Sumitomo

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/16/2007

DIN

SE0903AG3N

EPSR Insert included angle

90 Degree

FamilyProducts

insert for milling

GRD2ND Standard designation of the grade 2nd application

HW-K15

GRDMFG Grade manufacturers designation

GRDPRIO Standard designation of the grade main application

HW-K05

IC Inscribed circle diameter

9.525 mm

ID Technical product number

SEMT0903AGSN-G H1

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KCH Corner chamfer angle

45 Degree

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

9.525 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SE0903AG3N

Name Identifying order number

SEMT0903AGSN-G H1

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

SEMT0903AGSN

TCINS Tolerance class insert

Working process

No working processes available
