SEMN1204AZTN NX4545

Артикул: SEMN1204AZTN NX4545

В наличии

В корзину

Описание

Характеристики

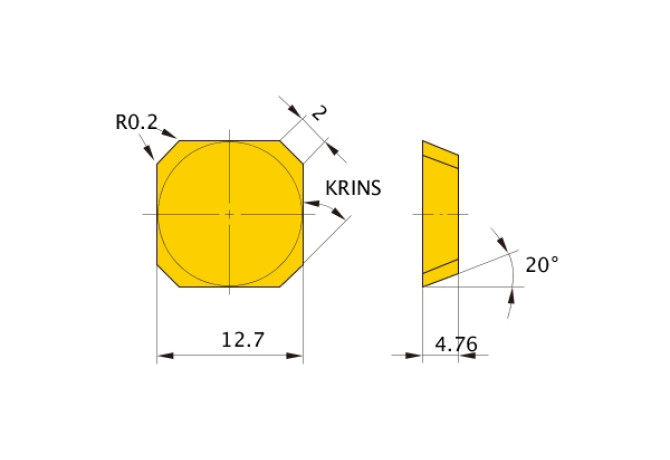

AN Clearance angle major

20 Degree

AS Clearance angle wiper edge

25 Degree

BS Wiper edge length

2 mm

CB Chip breaker face count

0 - Without chip breaker

CECC Cutting edge condition code

T - Chamfered

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

4/1/2022

DIN

SE1204AZ1N

EPSR Insert included angle

90 Degree

FamilyProducts

milling insert SEMN....AZTN

GRDMFG Grade manufacturers designation

NX4545

IC Inscribed circle diameter

12.7 mm

ID Technical product number

SEMN1204AZTN NX4545

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SE1204AZ1N

Name Identifying order number

SEMN1204AZTN NX4545

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SEMN1204AZTN

STDDESAnsi Standard designation ANSI

SEMN43AZTN

TCINS Tolerance class insert

Working process

FEC - Square shoulder milling,FPL - Face milling,FPR - Profile milling,FZI - Circular milling

WT Weight of item

0.05 kg
