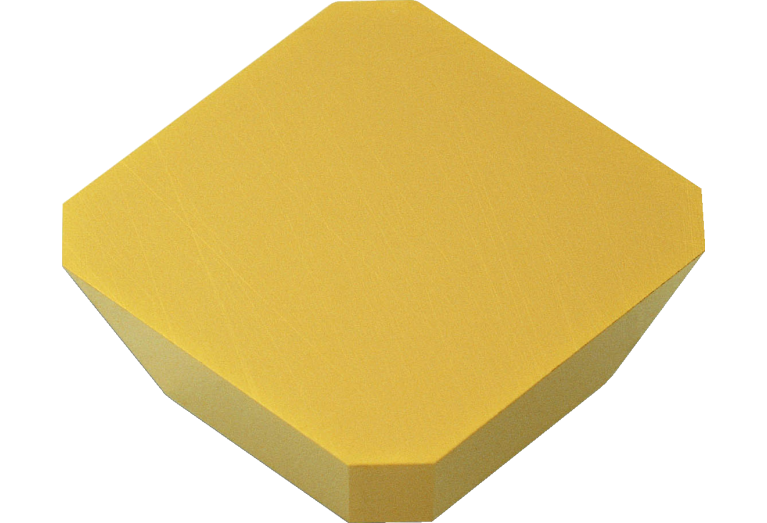

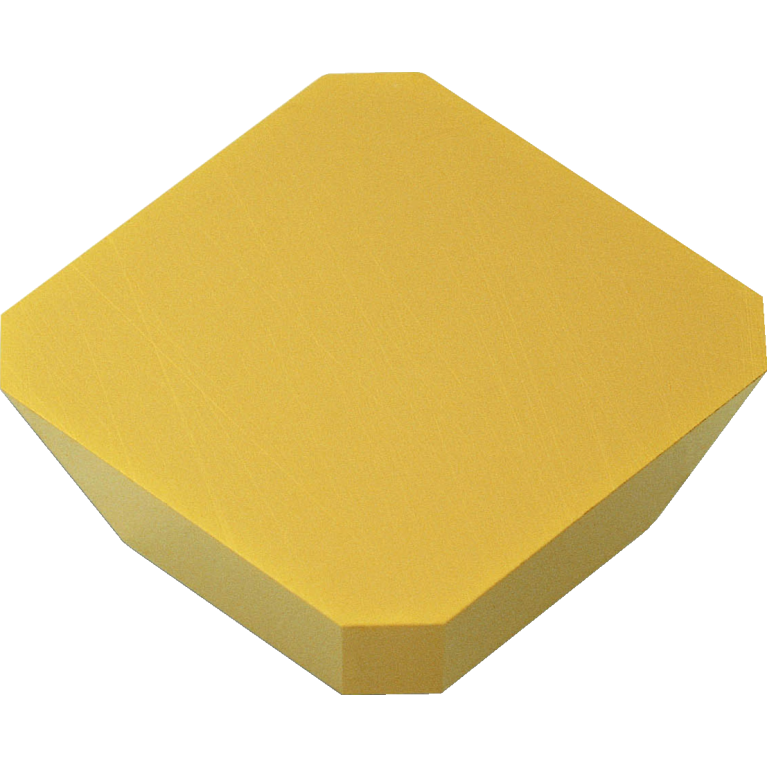

Главная Каталог продукции Toolunited 16 201-02 - Square insert SEMN1204AZ G10

SEMN1204AZ G10

Артикул: 1-03-001376

В наличии

В корзину

Описание

Характеристики

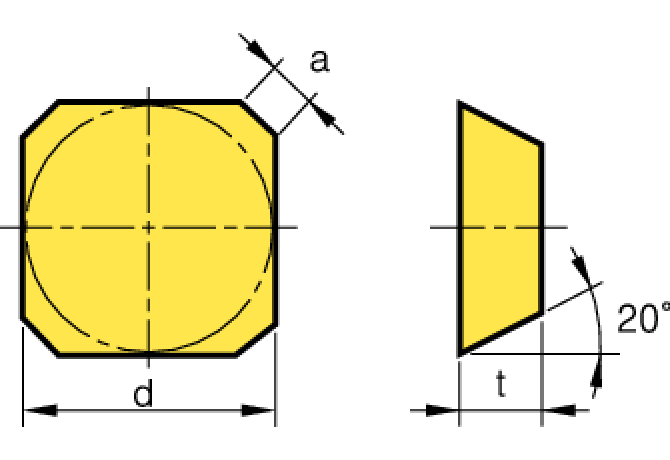

AN Clearance angle major

20 Degree

BS Wiper edge length

2 mm

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

ohne

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

6/4/2014

DIN

SE1204AZ1N

EPSR Insert included angle

90 Degree

FamilyProducts

Milling inserts

GRDMFG Grade manufacturers designation

G10

GRDPRIO Standard designation of the grade main application

Carbide

IC Inscribed circle diameter

12.7 mm

ID Technical product number

1-03-001376

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SE1204AZ1N

Name Identifying order number

SEMN1204AZ G10

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SEMN1204AZ

TCINS Tolerance class insert

Working process

F - Milling
