Главная Каталог продукции Toolunited 16 201-02 - Square insert SEMN 120308T IC635

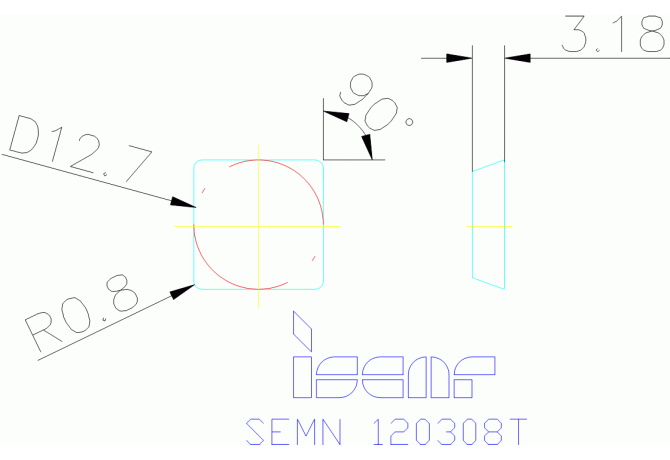

SEMN 120308T IC635

Артикул: 5600157

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

20 Degree

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

TiN+TiC+TiN

COMPC Company code

IS - Iscar

DIN

IS-163373186814388

EPSR Insert included angle

90 Degree

FamilyProducts

Square milling inserts with different corner radii, used for heavy machining.

GRDMFG Grade manufacturers designation

IC635

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5600157

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$163373186814388

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

12.7 mm

LOC-03 ISO

IS$$163373186814388

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-163373186814388

Name Identifying order number

SEMN 120308T IC635

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

Working process

No working processes available

WT Weight of item

0.01 kg
