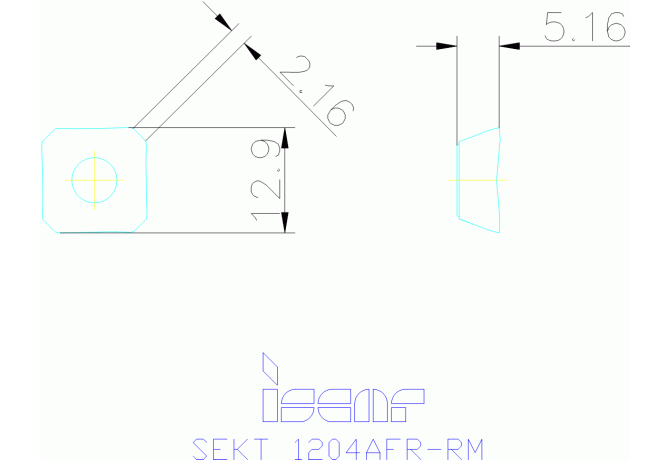

SEKT 1204AFR-RM IC635

Артикул: 5601044

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

20 Degree

AS Clearance angle wiper edge

25 Degree

BS Wiper edge length

2.16 mm

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

TiN+TiC+TiN

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

2/2/2018

EPSR Insert included angle

90 Degree

FamilyProducts

Super Positive Square Milling Inserts for 45\S\0 Finishing and Medium Machining

GRDMFG Grade manufacturers designation

IC635

IC Inscribed circle diameter

12.9 mm

ID Technical product number

5601044

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

12.9 mm

LE Cutting edge effective length

6.4 mm

Name Identifying order number

SEKT 1204AFR-RM IC635

NOI Insert index count

S Insert thickness

5.16 mm

TCINS Tolerance class insert

K - Cold formed

Working process

No working processes available

WT Weight of item

0.01 kg
