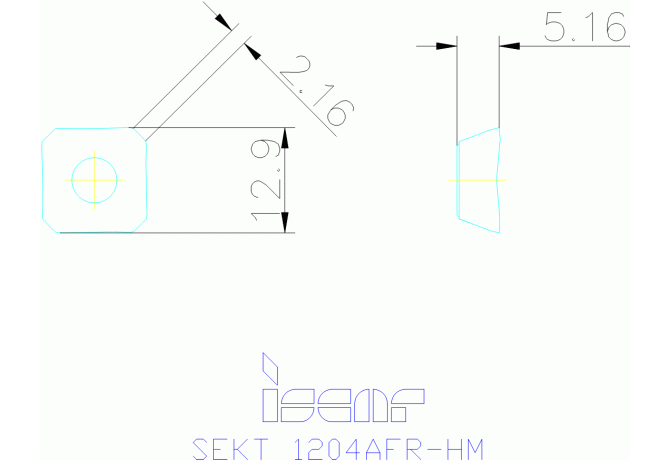

SEKT 1204AFR-HM IC50M

Артикул: 5600569

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

20 Degree

AS Clearance angle wiper edge

25 Degree

BS Wiper edge length

2.16 mm

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

2/1/2012

DIN

SE1204AF3R

EPSR Insert included angle

90 Degree

FamilyProducts

SEKT 1204AFR-HM IC50M

GRDMFG Grade manufacturers designation

IC50M

IC Inscribed circle diameter

12.9 mm

ID Technical product number

5600569

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

12.9 mm

LE Cutting edge effective length

6.4 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SE1204AF3R

Name Identifying order number

SEKT 1204AFR-HM IC50M

NOI Insert index count

S Insert thickness

5.16 mm

S1 Insert thickness total

5.16 mm

TCINS Tolerance class insert

K - Cold formed

Working process

No working processes available
