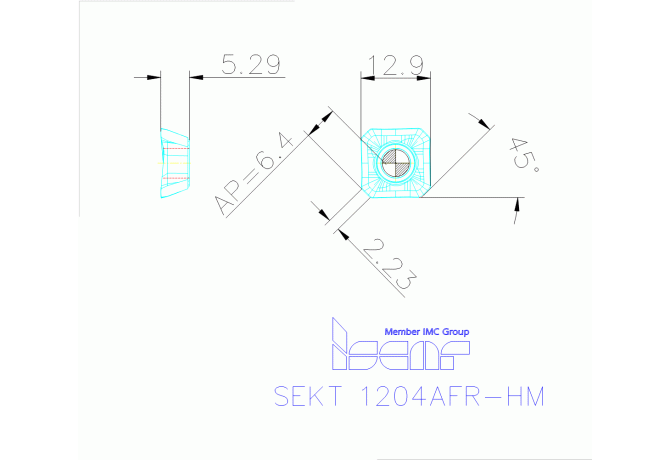

SEKT 1204AFR-HM IC250

Артикул: 5600742

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

20 Degree

BS Wiper edge length

2.16 mm

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

TiCN+TiN

COMPC Company code

IS - Iscar

EPSR Insert included angle

90 Degree

FamilyProducts

Super Positive Square Milling Inserts for 45° Finishing and Medium Machining of Soft Materials

GRDMFG Grade manufacturers designation

IC250

IC Inscribed circle diameter

12.9 mm

ID Technical product number

5600742

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

12.9 mm

Name Identifying order number

SEKT 1204AFR-HM IC250

S Insert thickness

5.16 mm

Working process

No working processes available

WT Weight of item

0.01 kg
