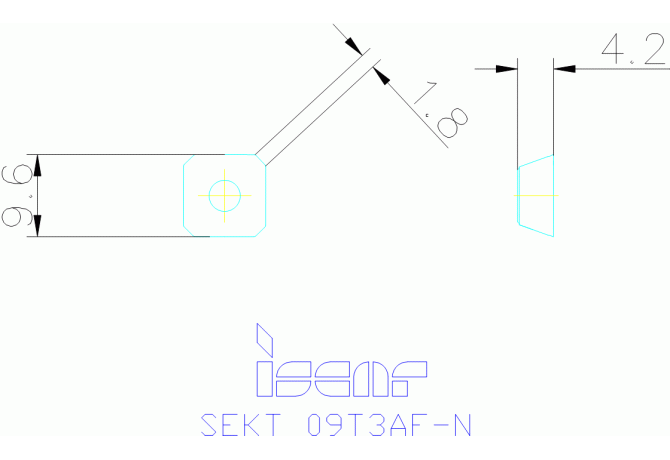

SEKT 09T3AF-N IC328

Артикул: 5601407

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

20 Degree

BS Wiper edge length

1.8 mm

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

TiCN

COMPC Company code

IS - Iscar

EPSR Insert included angle

90 Degree

FamilyProducts

Super Positive Square Milling Inserts for 45° Finishing and Medium Machining of Soft Materials

GRDMFG Grade manufacturers designation

IC328

IC Inscribed circle diameter

9.6 mm

ID Technical product number

5601407

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

9.6 mm

Name Identifying order number

SEKT 09T3AF-N IC328

S Insert thickness

4.2 mm

Working process

No working processes available
