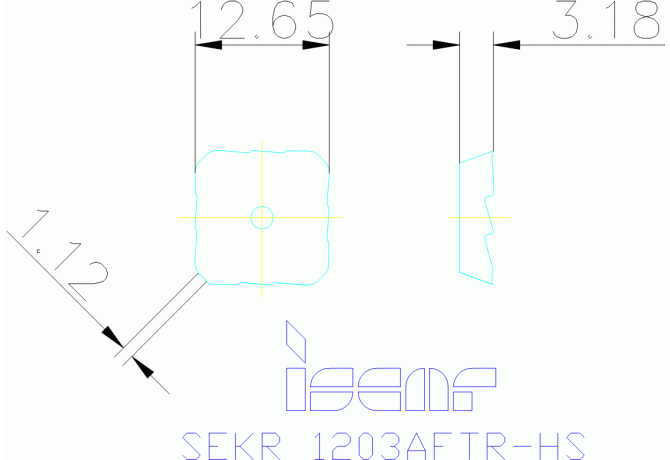

SEKR 1203AFTR-HS IC328

Артикул: 5601333

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

20 Degree

BS Wiper edge length

1.8 mm

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

TiCN

COMPC Company code

IS - Iscar

DIN

IS-163373186814388

EPSR Insert included angle

90 Degree

FamilyProducts

Square Milling Inserts with Chip Splitting Serrated Cutting Edge for 45° Roughing Applications

GRDMFG Grade manufacturers designation

IC328

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5601333

IFS Insert mounting style code

1 - Without bore

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$163373186814388

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

12.7 mm

LOC-03 ISO

IS$$163373186814388

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-163373186814388

Name Identifying order number

SEKR 1203AFTR-HS IC328

S Insert thickness

3.18 mm

Working process

No working processes available
