Главная Каталог продукции Toolunited 16 201-02 - Square insert SEKN1504EFTR1 UTi20T

SEKN1504EFTR1 UTi20T

Артикул: 104825

В наличии

В корзину

Описание

Характеристики

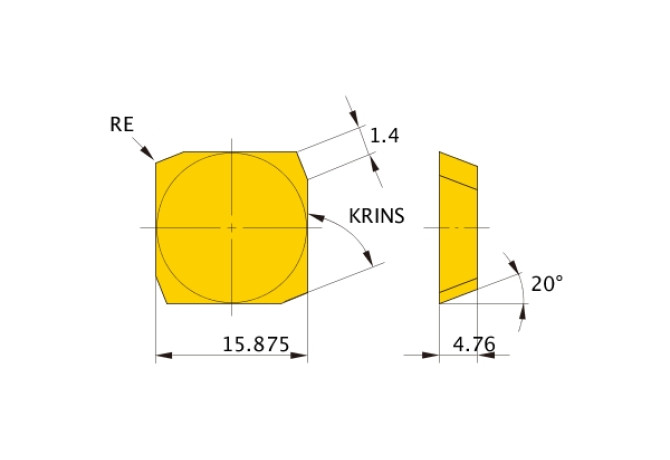

AN Clearance angle major

20 Degree

AS Clearance angle wiper edge

25 Degree

BS Wiper edge length

1.4 mm

CECC Cutting edge condition code

T - Chamfered

COMPC Company code

MI - Mitsubishi Materials

Delivery state valid from

4/1/2022

DIN

SE1504EF1R

EPSR Insert included angle

90 Degree

FamilyProducts

insert for milling, SEKN-EFTR1

GRDMFG Grade manufacturers designation

UTi20T

IC Inscribed circle diameter

15.875 mm

ID Technical product number

104825

IFS Insert mounting style code

1 - Without bore

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

75 Degree

L Cutting edge length

15.875 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SE1504EF1R

Name Identifying order number

SEKN1504EFTR1 UTi20T

NameAnsi Identifying order number inch alternative

SEKN53EFTR1 UTi20T

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SEKN1504EFTR

STDDESAnsi Standard designation ANSI

SEKN53EFTR

TCINS Tolerance class insert

K - Cold formed

Working process

No working processes available
