Главная Каталог продукции Toolunited 16 201-02 - Square insert SEHT1204AFN-K88 WK10

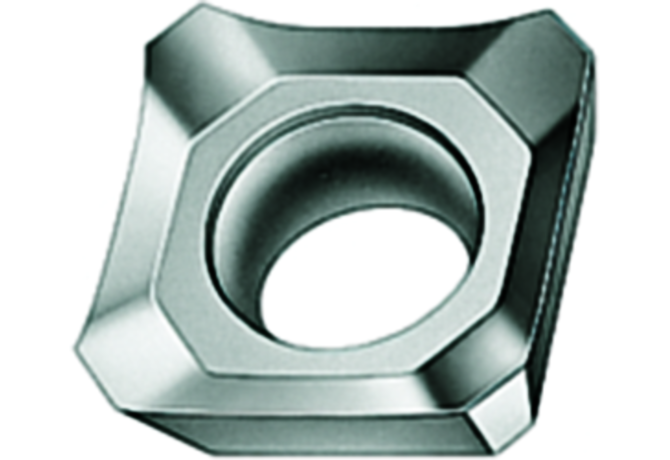

SEHT1204AFN-K88 WK10

Артикул: 5004774

В наличии

В корзину

Описание

Характеристики

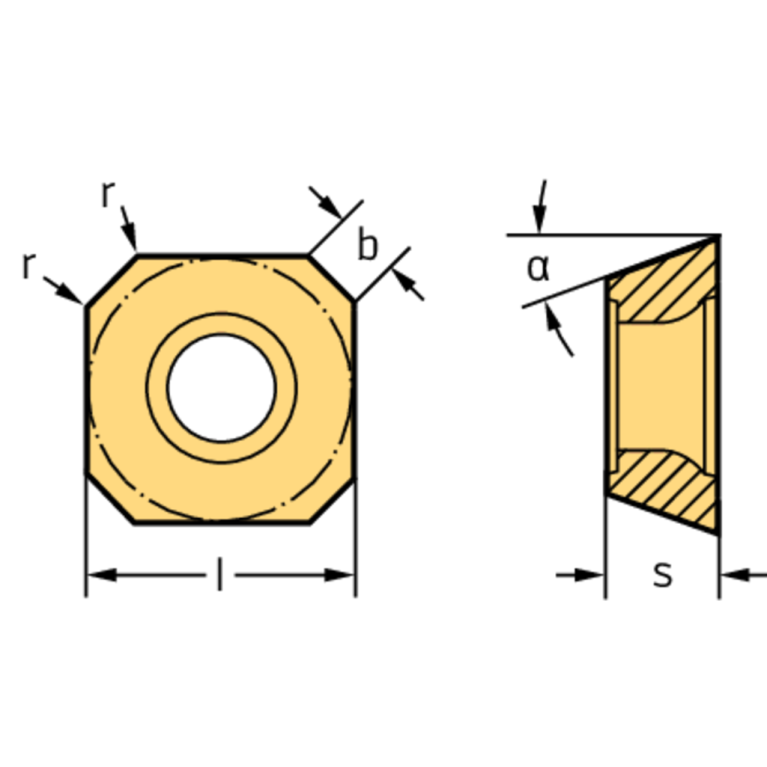

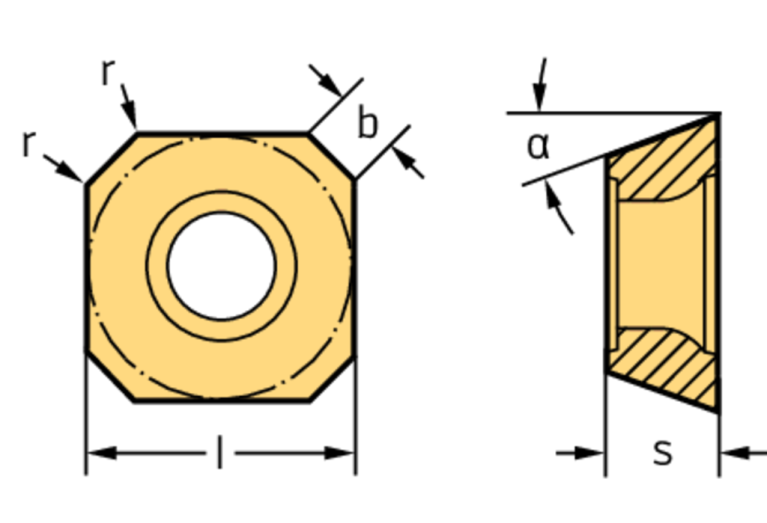

AN Clearance angle major

20 Degree

BS Wiper edge length

1.8 mm

CBMD Chip breaker manufacturers designation

K88

CECC Cutting edge condition code

F - Sharpedged

COATN Coating / Покрытие

ohne

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

12/1/2023

DIN

W-SE1204$$3NB$$$$

EPSR Insert included angle

90 Degree

FamilyProducts

Positive square SEHT

GRDMFG Grade manufacturers designation

WK10

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5004774

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

WR$$SE1204$$3NB$$$$

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LOC-03 ISO

WR$$SE1204$$3NB$$$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

W-SE1204$$3NB$$$$

Name Identifying order number

SEHT1204AFN-K88 WK10

NameAnsi Identifying order number inch alternative

SEHT43AFN-K88 WK10

NOI Insert index count

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SEHT1204AFN

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.005 kg
