Главная Каталог продукции Toolunited 16 201-02 - Square insert SEGW12X4ZEPR NS740

SEGW12X4ZEPR NS740

Артикул: 6822222

В наличии

В корзину

Описание

Характеристики

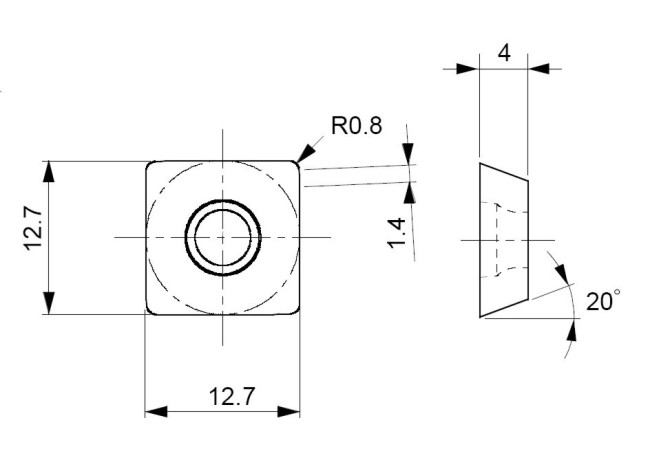

AN Clearance angle major

20 Degree

CB Chip breaker face count

0 - Without chip breaker

CHW Corner chamfer width

1.4 mm

COMPC Company code

TT - Tungaloy

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

5/1/2007

DIN

SE12X4 3R

EPSR Insert included angle

90 Degree

FamilyProducts

insert for aluminum and copper alloys

GRDMFG Grade manufacturers designation

NS740

IC Inscribed circle diameter

12.7 mm

ID Technical product number

6822222

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SE12X4 3R

Name Identifying order number

SEGW12X4ZEPR NS740

RE Corner radius

0.8 mm

S Insert thickness

4 mm

S1 Insert thickness total

4 mm

STDDES Standard designation

SEGW12X4ZEPR

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning
