Главная Каталог продукции Toolunited 16 201-02 - Square insert SEGW12X4ZEPR AH140

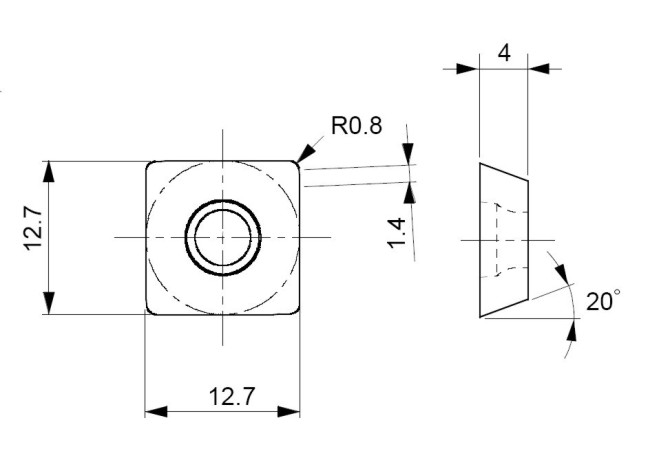

SEGW12X4ZEPR AH140

Артикул: 6822221

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

20 Degree

CB Chip breaker face count

0 - Without chip breaker

CHW Corner chamfer width

1.4 mm

COATN Coating / Покрытие

TiAlN-PVD

COMPC Company code

TT - Tungaloy

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

5/1/2007

DIN

SE12X4 3R

EPSR Insert included angle

90 Degree

FamilyProducts

insert for aluminum and copper alloys

GRD2ND Standard designation of the grade 2nd application

HC-M40

GRDMFG Grade manufacturers designation

AH140

GRDPRIO Standard designation of the grade main application

HC-M35

IC Inscribed circle diameter

12.7 mm

ID Technical product number

6822221

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SE12X4 3R

Name Identifying order number

SEGW12X4ZEPR AH140

RE Corner radius

0.8 mm

S Insert thickness

4 mm

S1 Insert thickness total

4 mm

STDDES Standard designation

SEGW12X4ZEPR

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning
