Главная Каталог продукции Toolunited 16 201-02 - Square insert SEET13T3AGFN-L ACZ350

SEET13T3AGFN-L ACZ350

Артикул: SEET13T3AGFN-L ACZ350

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

20 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

F - Sharpedged

COATN Coating / Покрытие

ZX-TiNAlN

COMPC Company code

SU - Sumitomo

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/16/2007

DIN

SE13T3AG3N

EPSR Insert included angle

90 Degree

FamilyProducts

insert for milling

GRD2ND Standard designation of the grade 2nd application

HC-P40

GRD3RD Standard designation of the grade 3rd application

HP-M40

GRDMFG Grade manufacturers designation

ACZ350

GRDPRIO Standard designation of the grade main application

HC-P30

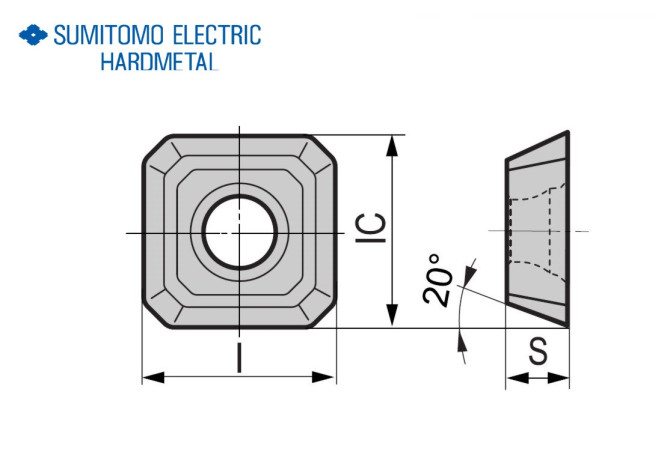

IC Inscribed circle diameter

13.4 mm

ID Technical product number

SEET13T3AGFN-L ACZ350

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KCH Corner chamfer angle

45 Degree

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

13.4 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SE13T3AG3N

Name Identifying order number

SEET13T3AGFN-L ACZ350

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

SEET13T3AGFN

TCINS Tolerance class insert

Working process

No working processes available
