Главная Каталог продукции Toolunited 16 201-02 - Square insert SECN1203EFFR1 MD205

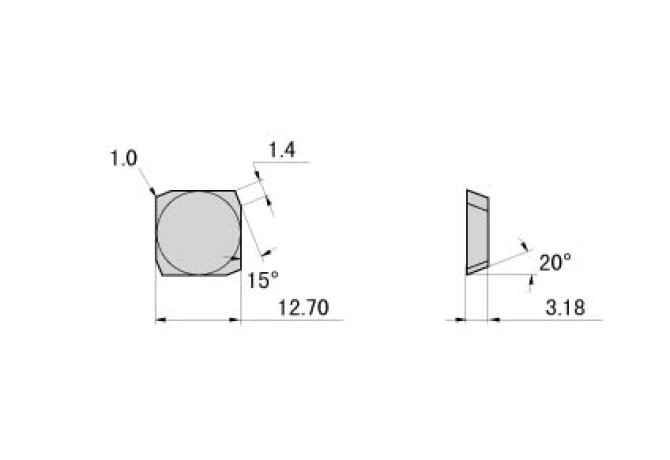

SECN1203EFFR1 MD205

Артикул: SECN1203EFFR1 MD205

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

20 Degree

AS Clearance angle wiper edge

25 Degree

BS Wiper edge length

1.4 mm

CB Chip breaker face count

0 - Without chip breaker

CECC Cutting edge condition code

F - Sharpedged

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

4/1/2022

DIN

SE1203EF1R

EPSR Insert included angle

90 Degree

FamilyProducts

INSERT, MILLING, DIAMOND

GAN Insert rake angle

0 Degree

GRDMFG Grade manufacturers designation

MD205

IC Inscribed circle diameter

12.7 mm

ID Technical product number

SECN1203EFFR1 MD205

IFS Insert mounting style code

1 - Without bore

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

75 Degree

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SE1203EF1R

Name Identifying order number

SECN1203EFFR1 MD205

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

SECN1203EFFR

STDDESAnsi Standard designation ANSI

SECN42EFFR1

TCINS Tolerance class insert

Working process

F - Milling,FEC - Square shoulder milling,FPL - Face milling,FPR - Profile milling,FZI - Circular milling
