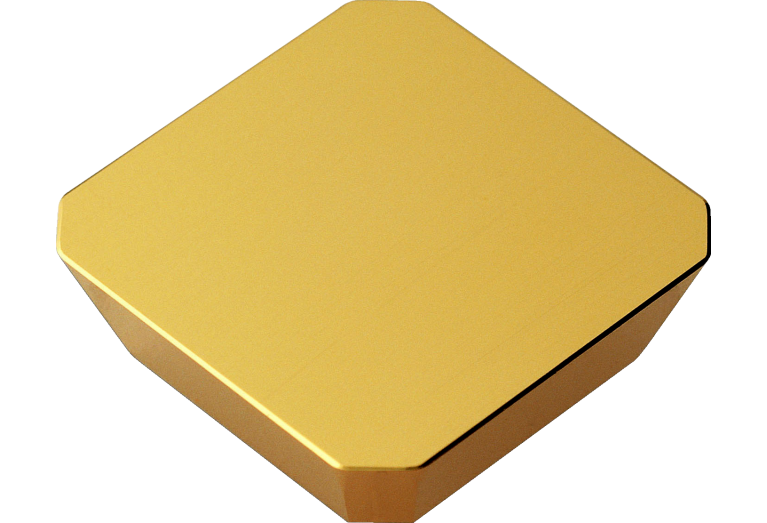

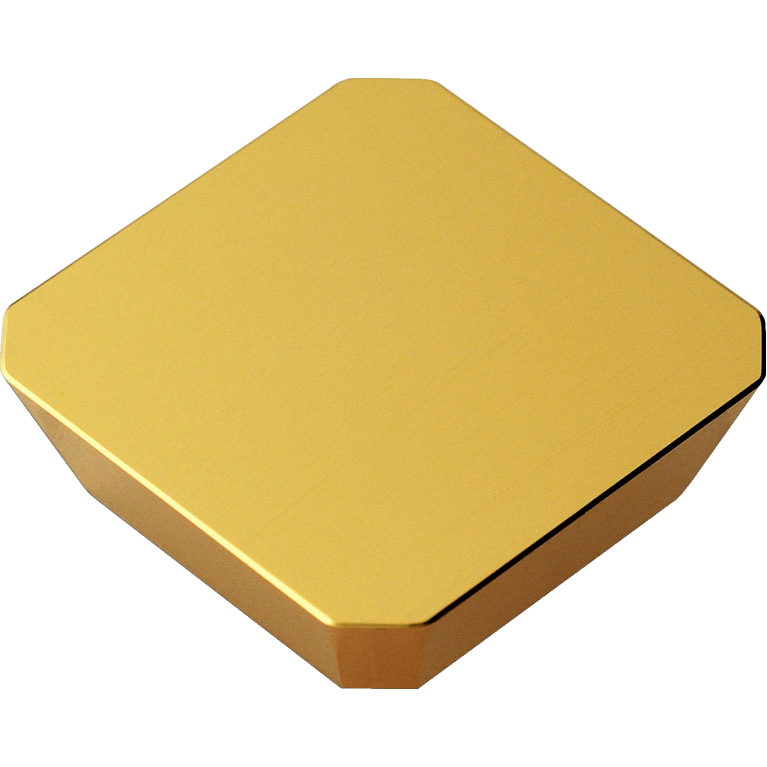

SECN1203AFSN NC5330

Артикул: 1-02-039464

В наличии

В корзину

Описание

Характеристики

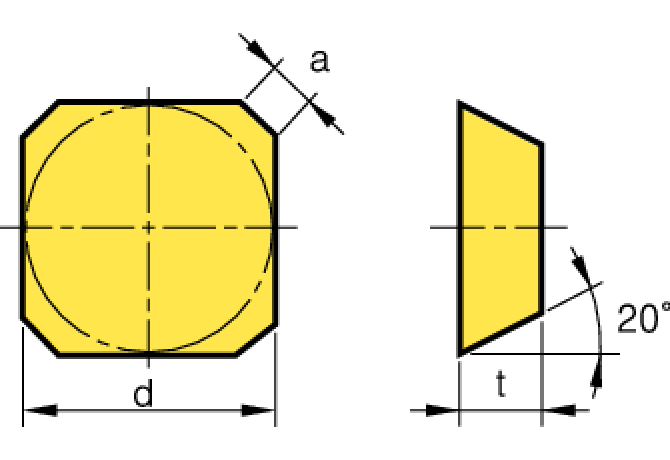

AN Clearance angle major

20 Degree

AS Clearance angle wiper edge

25 Degree

BS Wiper edge length

2.36 mm

CB Chip breaker face count

0 - Without chip breaker

CECC Cutting edge condition code

S - Chamfered and rounded

COATN Coating / Покрытие

Coated

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

6/4/2014

DIN

SE1203AF1N

EPSR Insert included angle

90 Degree

FamilyProducts

Milling inserts

GRDMFG Grade manufacturers designation

NC5330

GRDPRIO Standard designation of the grade main application

Carbide

IC Inscribed circle diameter

12.7 mm

ID Technical product number

1-02-039464

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SE1203AF1N

Name Identifying order number

SECN1203AFSN NC5330

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

SECN1203AFSN

TCINS Tolerance class insert

Working process

F - Milling
