Главная Каталог продукции Toolunited 16 201-02 - Square insert SEAN1203AFTN AC325

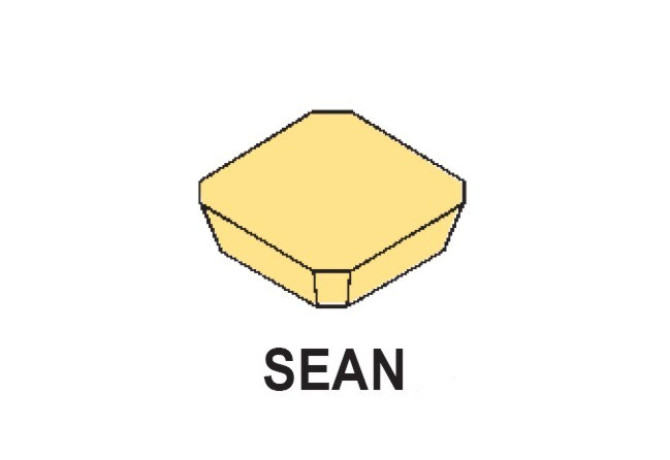

SEAN1203AFTN AC325

Артикул: SEAN1203AFTN AC325

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

20 Degree

AS Clearance angle wiper edge

25 Degree

CB Chip breaker face count

0 - Without chip breaker

CECC Cutting edge condition code

T - Chamfered

CHW Corner chamfer width

1.4 mm

COATN Coating / Покрытие

TiCN+TiN

COMPC Company code

SU - Sumitomo

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/16/2007

DIN

SE1203 1N

EPSR Insert included angle

90 Degree

FamilyProducts

Sumitomo indexable insert for milling

GRD2ND Standard designation of the grade 2nd application

HC-P30

GRD3RD Standard designation of the grade 3rd application

HC-M30

GRDMFG Grade manufacturers designation

AC325

GRDPRIO Standard designation of the grade main application

HC-P20

IC Inscribed circle diameter

12.7 mm

ID Technical product number

SEAN1203AFTN AC325

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SE1203 1N

M M-dimension

0.005 mm

Name Identifying order number

SEAN1203AFTN AC325

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

SEAN1203AFTN

TCINS Tolerance class insert

Working process

No working processes available
