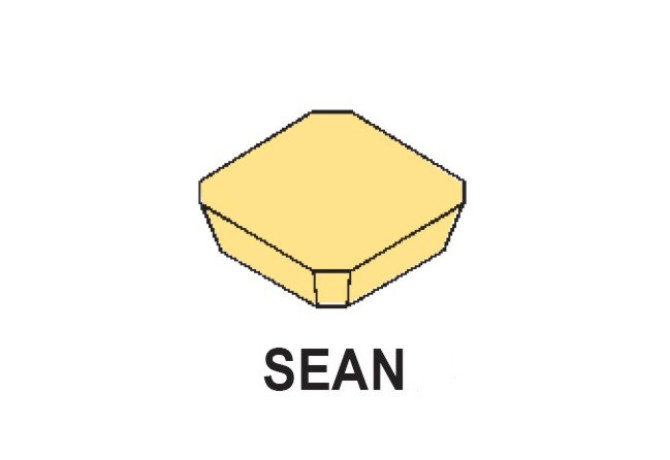

SEAN1203AFN T250A

Артикул: SEAN1203AFN T250A

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

20 Degree

AS Clearance angle wiper edge

25 Degree

CB Chip breaker face count

0 - Without chip breaker

CHW Corner chamfer width

1.4 mm

COMPC Company code

SU - Sumitomo

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/16/2007

DIN

SE1203AF1N

EPSR Insert included angle

90 Degree

FamilyProducts

insert for milling, 20° positive

GRD2ND Standard designation of the grade 2nd application

HT-P15

GRD3RD Standard designation of the grade 3rd application

HT-M15

GRDMFG Grade manufacturers designation

T250A

GRDPRIO Standard designation of the grade main application

HT-P20

IC Inscribed circle diameter

12.7 mm

ID Technical product number

SEAN1203AFN T250A

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KCH Corner chamfer angle

45 Degree

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SE1203AF1N

Name Identifying order number

SEAN1203AFN T250A

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

SEAN1203AFN

TCINS Tolerance class insert

Working process

No working processes available
