Главная Каталог продукции Toolunited 16 201-02 - Square insert SDXT09M405L-MM NCM335

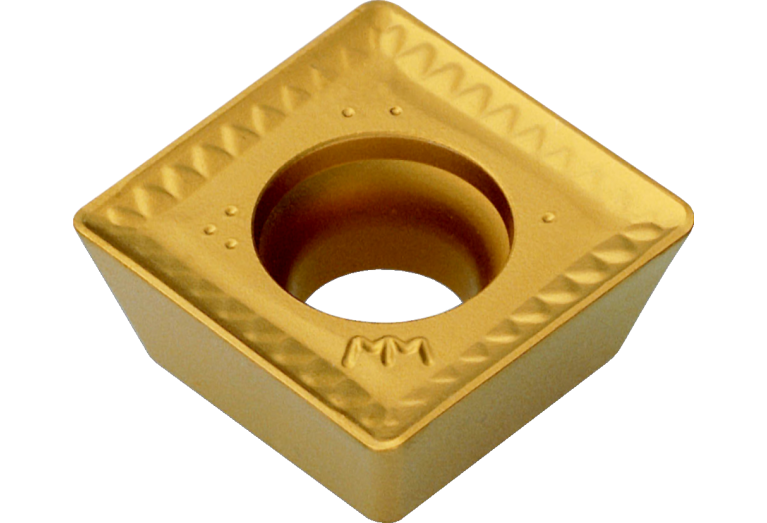

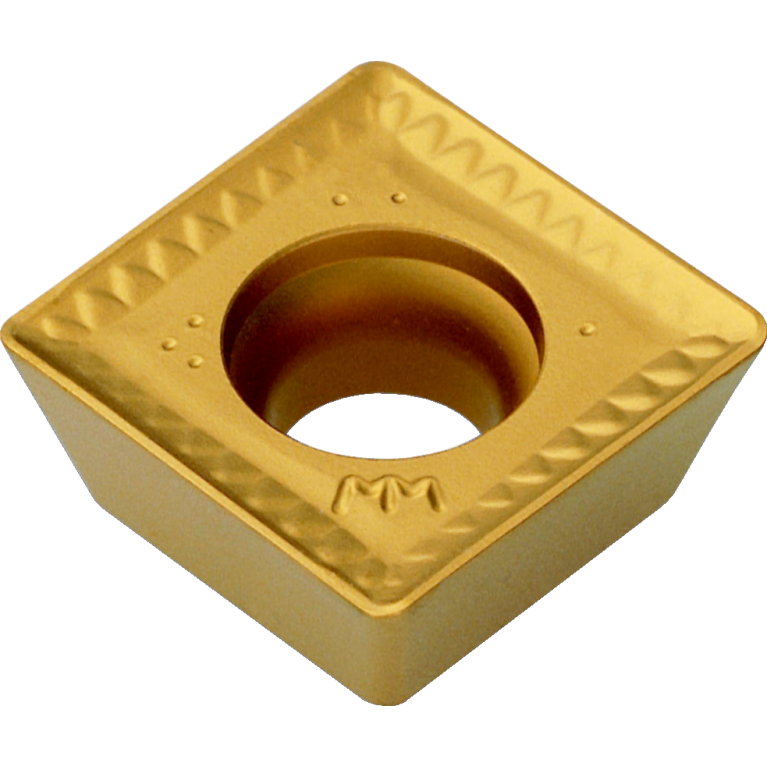

SDXT09M405L-MM NCM335

Артикул: 1-02-013351

В наличии

В корзину

Описание

Характеристики

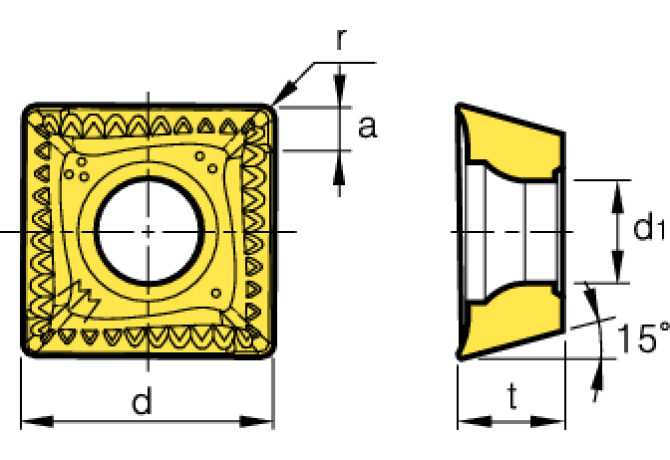

AN Clearance angle major

15 Degree

BS Wiper edge length

1.2 mm

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

Coated

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4 mm

Delivery state valid from

6/4/2014

DIN

SD09M4 3L

EPSR Insert included angle

90 Degree

FamilyProducts

Milling inserts

GRDMFG Grade manufacturers designation

NCM335

GRDPRIO Standard designation of the grade main application

Carbide

IC Inscribed circle diameter

9.525 mm

ID Technical product number

1-02-013351

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

L - Left

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

9.525 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SD09M4 3L

Name Identifying order number

SDXT09M405L-MM NCM335

RE Corner radius

0.5 mm

S Insert thickness

4 mm

S1 Insert thickness total

4 mm

STDDES Standard designation

SDXT09M405L

Working process

F - Milling
