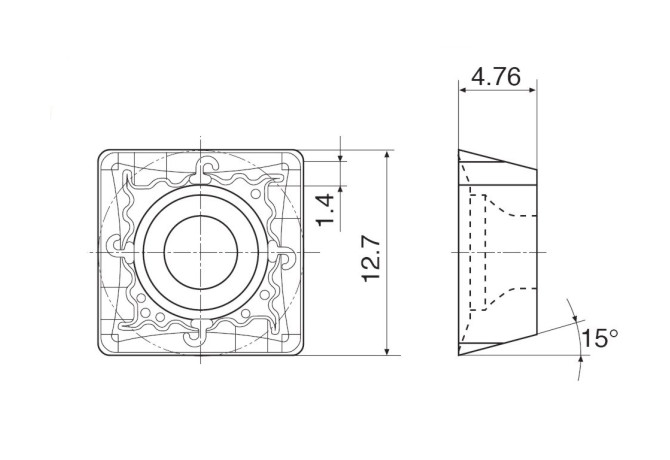

SDMT1204PDSR-MJ T1020

Артикул: SDMT1204PDSR-MJ T1020

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CHW Corner chamfer width

1.4 mm

COATN Coating / Покрытие

CVD

COMPC Company code

TT - Tungaloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

0.8 mm

Delivery state valid from

8/24/2006

DIN

SD1204PD3N

EPSR Insert included angle

90 Degree

FamilyProducts

Milling insert

GRDMFG Grade manufacturers designation

T1020

IC Inscribed circle diameter

12.7 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SD1204PD3N

Name Identifying order number

SDMT1204PDSR-MJ T1020

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SDMT1204PDSR

TCINS Tolerance class insert

Working process

No working processes available
