SDMT1204PDPR-ML AH330

Артикул: 6806259

В наличии

В корзину

Описание

Характеристики

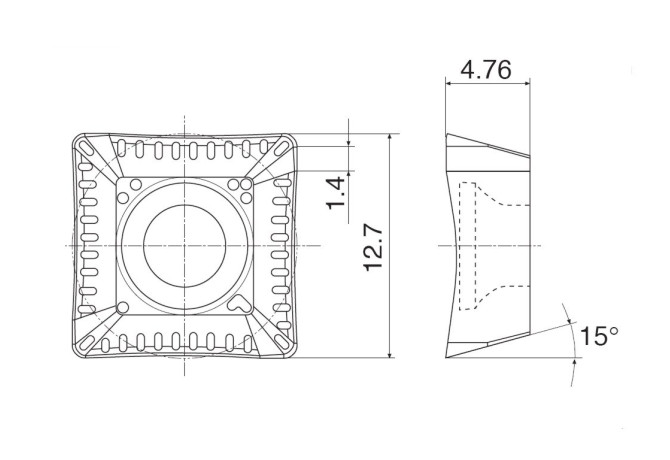

AN Clearance angle major

15 Degree

AS Clearance angle wiper edge

15 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

P - Doublechamfered and rounded

CHW Corner chamfer width

1.4 mm

COATN Coating / Покрытие

PVD

COMPC Company code

TT - Tungaloy

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

10/26/2012

DIN

SD1204PD3R

EPSR Insert included angle

90 Degree

FamilyProducts

Fräswendeplatte

GRDMFG Grade manufacturers designation

AH330

IC Inscribed circle diameter

12.7 mm

ID Technical product number

6806259

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

90 Degree

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SD1204PD3R

Name Identifying order number

SDMT1204PDPR-ML AH330

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SDMT1204PDPR

TCINS Tolerance class insert

Working process

No working processes available
