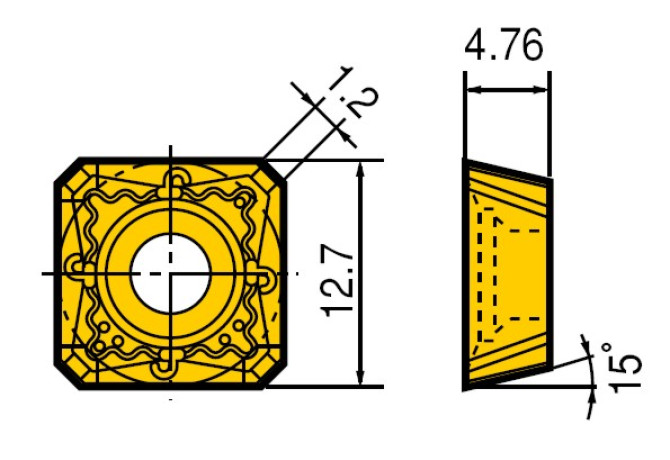

SDMT1204AFPN-MJ T3130

Артикул: 6853834

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

P - Doublechamfered and rounded

CHW Corner chamfer width

1.2 mm

COMPC Company code

TT - Tungaloy

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

10/26/2012

DIN

SD1204AF3N

EPSR Insert included angle

90 Degree

FamilyProducts

Wendeschneidplatte T3130 mit Schutzfase

GRDMFG Grade manufacturers designation

T3130

IC Inscribed circle diameter

12.7 mm

ID Technical product number

6853834

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KCH Corner chamfer angle

45 Degree

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SD1204AF3N

Name Identifying order number

SDMT1204AFPN-MJ T3130

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SDMT1204AFPN

TCINS Tolerance class insert

Working process

No working processes available
