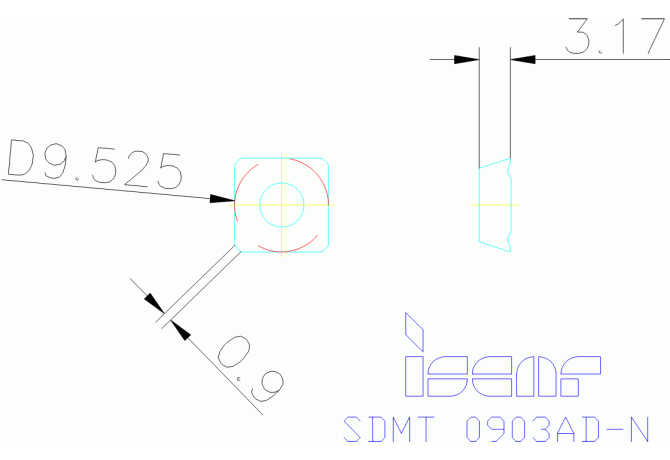

SDMT 0903AD-N IC520M

Артикул: 5600124

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

BS Wiper edge length

0.9 mm

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

TiCN

COMPC Company code

IS - Iscar

DIN

IS-29018234421839

EPSR Insert included angle

90 Degree

FamilyProducts

Inserts for General Use on 45° Endmills

GRDMFG Grade manufacturers designation

IC520M

IC Inscribed circle diameter

9.52 mm

ID Technical product number

5600124

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$29018234421839

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

9.52 mm

LOC-03 ISO

IS$$29018234421839

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-29018234421839

Name Identifying order number

SDMT 0903AD-N IC520M

S Insert thickness

3.18 mm

Working process

No working processes available
