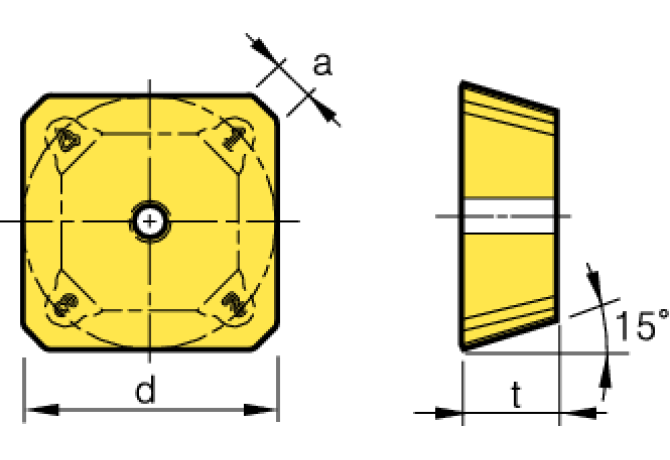

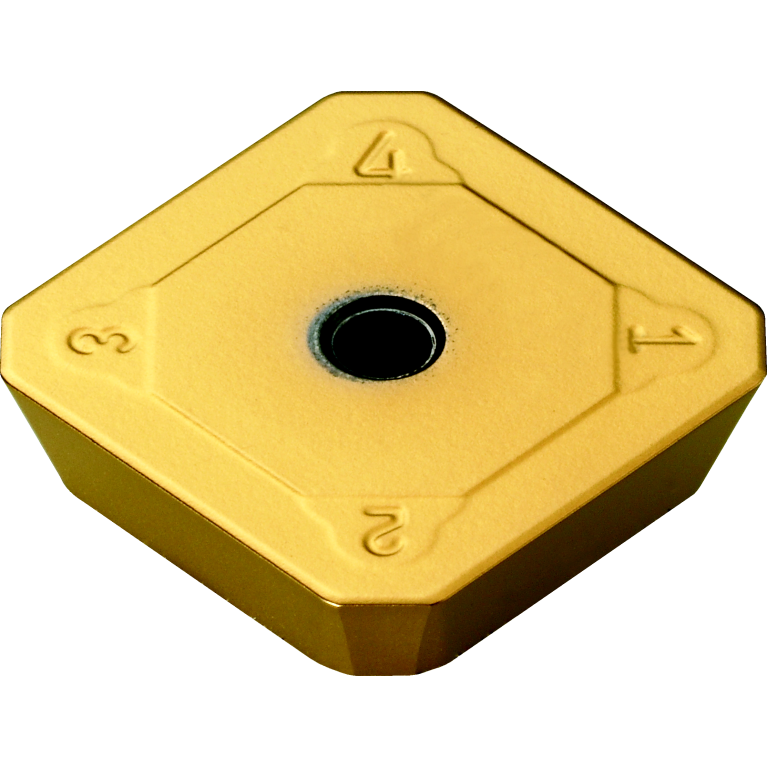

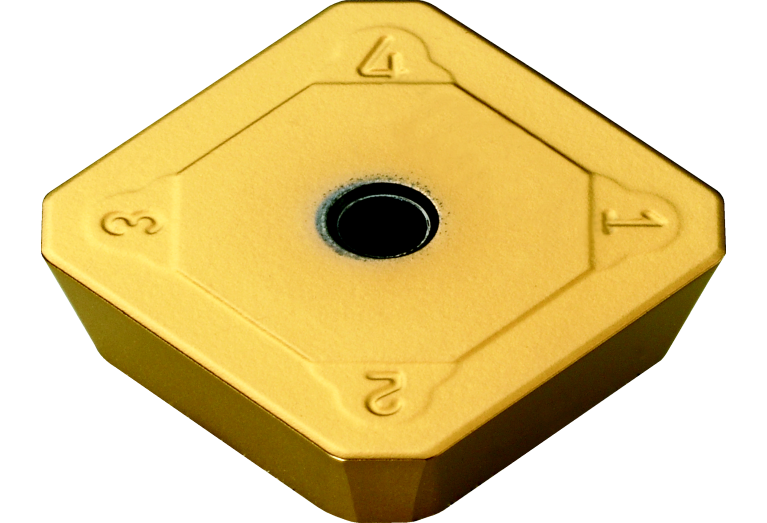

SDKN1203AESN-SU PC5300

SDKN1203AESN-SU PC5300 SDKN1203AESN-SU PC5300 SDKN1203AESN-SU PC5300

SDKN1203AESN-SU PC5300

Korloy
Артикул: 1-02-040095
В наличии
В корзину
Описание
Характеристики
AN Clearance angle major
15 Degree
AS Clearance angle wiper edge
20 Degree
BS Wiper edge length
2.08 mm
CB Chip breaker face count
0 - Without chip breaker
CBMD Chip breaker manufacturers designation
SU
CECC Cutting edge condition code
S - Chamfered and rounded
COATN Coating / Покрытие
Coated
COMPC Company code
KOR - Korloy
CSP Coolant supply property
0 - Without coolant supply
Delivery state valid from
6/4/2014
DIN
SD1203AE1N
EPSR Insert included angle
90 Degree
FamilyProducts
Milling inserts
GRDMFG Grade manufacturers designation
PC5300
GRDPRIO Standard designation of the grade main application
Carbide
IC Inscribed circle diameter
12.7 mm
ID Technical product number
1-02-040095
IFS Insert mounting style code
1 - Without bore
IH Insert hand
N - Neutral
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-02 - Square insert
KRINS Cutting edge angle major
45 Degree
L Cutting edge length
12.7 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SD1203AE1N
Materials
P
Name Identifying order number
SDKN1203AESN-SU PC5300
S Insert thickness
3.18 mm
S1 Insert thickness total
3.18 mm
STDDES Standard designation
SDKN1203AESN
TCINS Tolerance class insert
K - Cold formed
Working process
F - Milling
