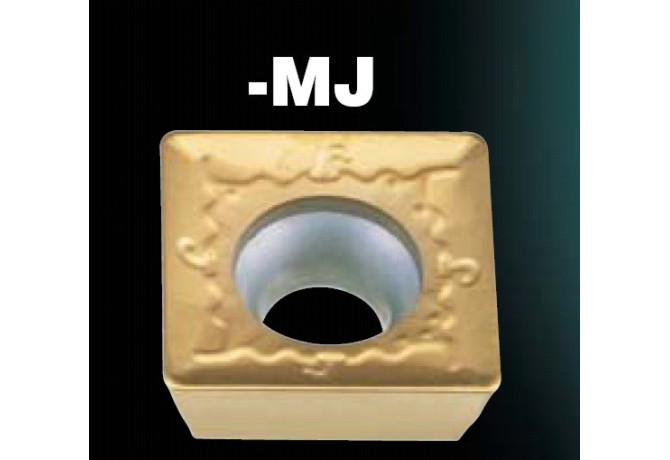

SDGT1204PDTR-MJ NS530

Артикул: SDGT1204PDTR-MJ NS530

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

T - Chamfered

CHW Corner chamfer width

1.8 mm

COMPC Company code

TT - Tungaloy

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

10/26/2012

DIN

SD1204PD3N

EPSR Insert included angle

90 Degree

FamilyProducts

Milling insert

GRDMFG Grade manufacturers designation

NS530

GRDPRIO Standard designation of the grade main application

HT-P15

IC Inscribed circle diameter

12.7 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

90 Degree

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SD1204PD3N

Name Identifying order number

SDGT1204PDTR-MJ NS530

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SDGT1204PDTR

TCINS Tolerance class insert

Working process

No working processes available
