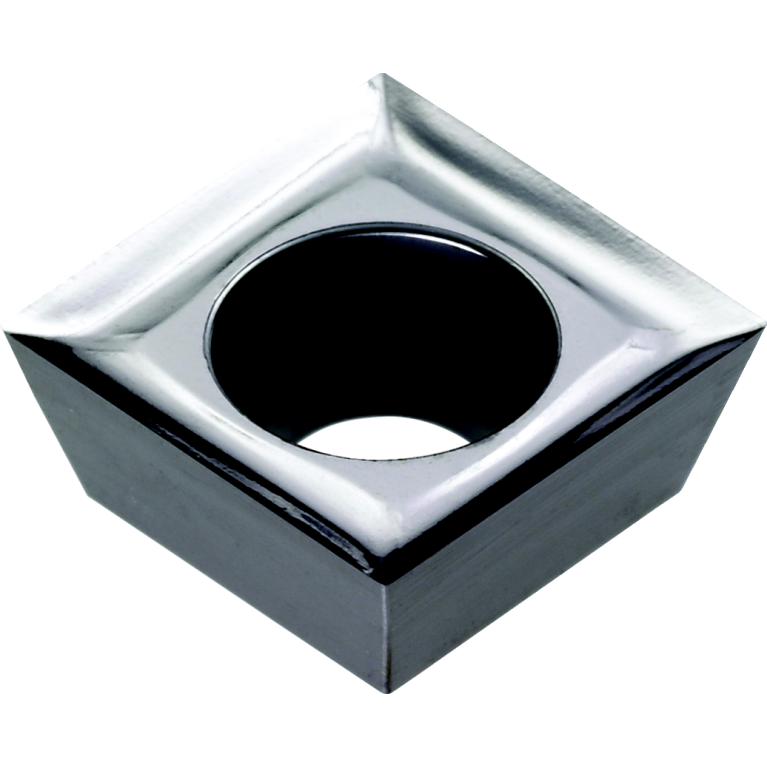

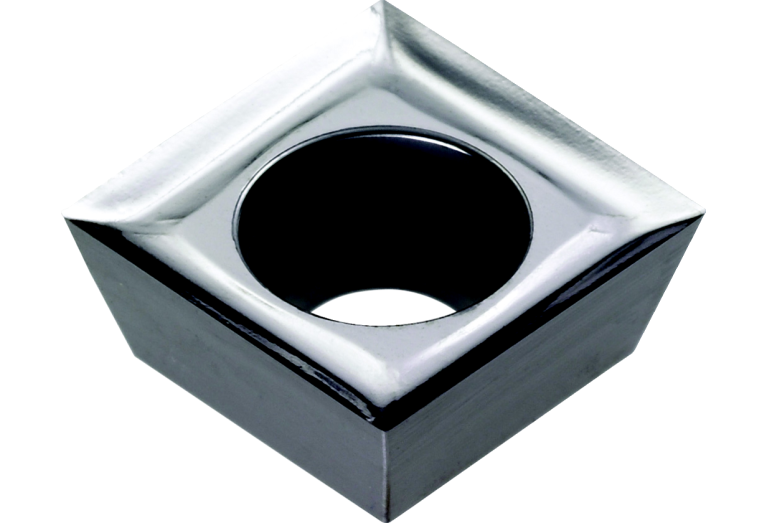

SDET130504R-MA H01

Артикул: 1-03-012731

В наличии

В корзину

Описание

Характеристики

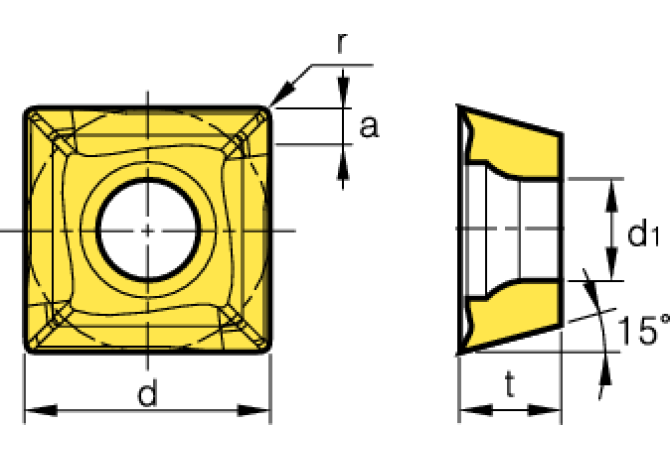

AN Clearance angle major

15 Degree

BS Wiper edge length

2.2 mm

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

ohne

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.56 mm

Delivery state valid from

6/4/2014

DIN

SD1305 3R

EPSR Insert included angle

90 Degree

FamilyProducts

Milling inserts

GRDMFG Grade manufacturers designation

H01

GRDPRIO Standard designation of the grade main application

Carbide

IC Inscribed circle diameter

13.5 mm

ID Technical product number

1-03-012731

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

13.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SD1305 3R

Name Identifying order number

SDET130504R-MA H01

RE Corner radius

0.4 mm

S Insert thickness

5.56 mm

S1 Insert thickness total

5.56 mm

STDDES Standard designation

SDET130504R

TCINS Tolerance class insert

Working process

F - Milling
