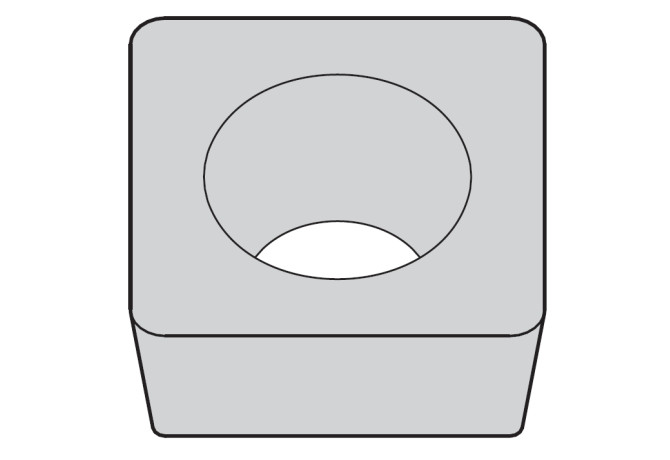

SCMW09T308 WK20CT

Артикул: 4170379

В наличии

В корзину

Описание

Характеристики

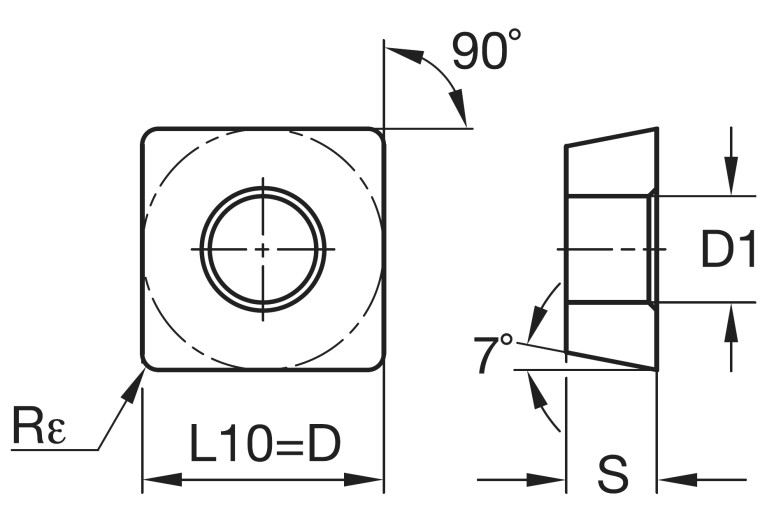

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

WI - Widia

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

6/5/2012

DIN

SC09T3083N

EPSR Insert included angle

90 Degree

FamilyProducts

indexable insert for turning, positive, SCMW

GRDMFG Grade manufacturers designation

WK20CT

IC Inscribed circle diameter

9.53 mm

ID Technical product number

4170379

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

9.53 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SC09T3083N

Materials

Name Identifying order number

SCMW09T308 WK20CT

NameAnsi Identifying order number inch alternative

SCMW3252 WK20CT

RE Corner radius

0.8 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

SCMW09T308

STDDESAnsi Standard designation ANSI

SCMW3252

TCINS Tolerance class insert

Working process

No working processes available
