Главная Каталог продукции Toolunited 16 201-02 - Square insert SCMW 120408 IC20

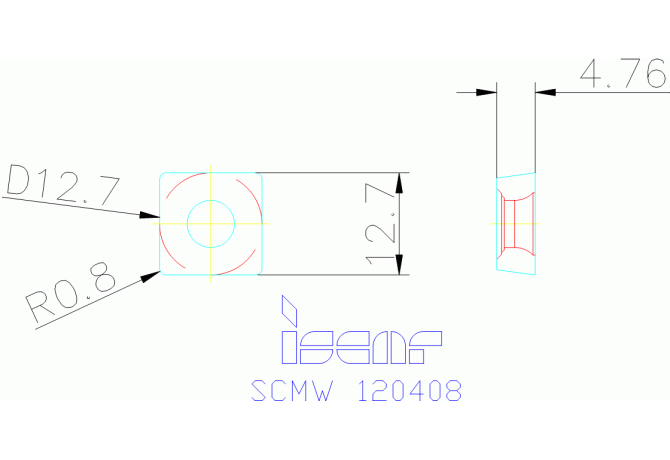

SCMW 120408 IC20

Артикул: 5600111

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

2/1/2012

DIN

SC1204083N

EPSR Insert included angle

90 Degree

FamilyProducts

SCMW 120408 IC20

GRDMFG Grade manufacturers designation

IC20

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5600111

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SC1204083N

Name Identifying order number

SCMW 120408 IC20

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SCMW120408

STDDESAnsi Standard designation ANSI

SCMW432

TCINS Tolerance class insert

Working process

No working processes available
