SCMT120412 TN7125

Артикул: SCMT120412 TN7125

В наличии

В корзину

Описание

Характеристики

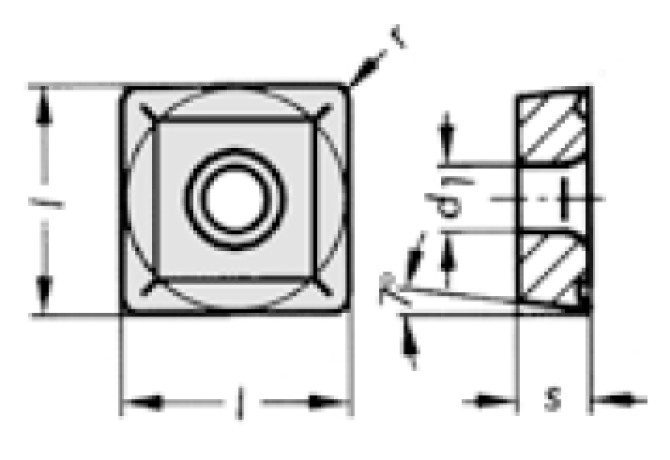

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COMPC Company code

WI - Widia

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

6/16/2013

DIN

SC1204123N

EPSR Insert included angle

90 Degree

FamilyProducts

indexable insert SCMT, single sided

GRDMFG Grade manufacturers designation

TN7125

GRDPRIO Standard designation of the grade main application

HC-P25

IC Inscribed circle diameter

12.7 mm

ID Technical product number

SCMT120412 TN7125

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SC1204123N

Materials

P,M

Name Identifying order number

SCMT120412 TN7125

RE Corner radius

1.2 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SCMT120412

STDDESAnsi Standard designation ANSI

SCMT433

TCINS Tolerance class insert

Working process

DDI - Internal turning,DDA - External turning
