Главная Каталог продукции Toolunited 16 201-02 - Square insert SCMT120412 TN5120

SCMT120412 TN5120

Артикул: 122216626

В наличии

В корзину

Описание

Характеристики

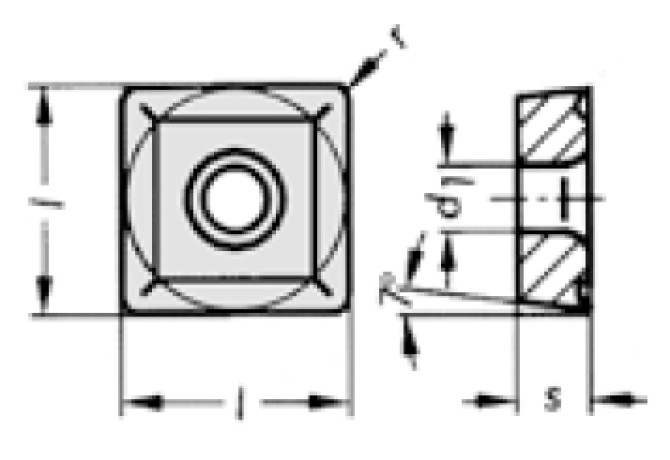

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COMPC Company code

WI - Widia

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

6/16/2013

DIN

SC1204123N

EPSR Insert included angle

90 Degree

FamilyProducts

indexable insert SCMT, single sided

GRDMFG Grade manufacturers designation

TN5120

IC Inscribed circle diameter

12.7 mm

ID Technical product number

122216626

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SC1204123N

Materials

Name Identifying order number

SCMT120412 TN5120

NameAnsi Identifying order number inch alternative

SCMT433 TN5120

RE Corner radius

1.2 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SCMT120412

STDDESAnsi Standard designation ANSI

SCMT433

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning
