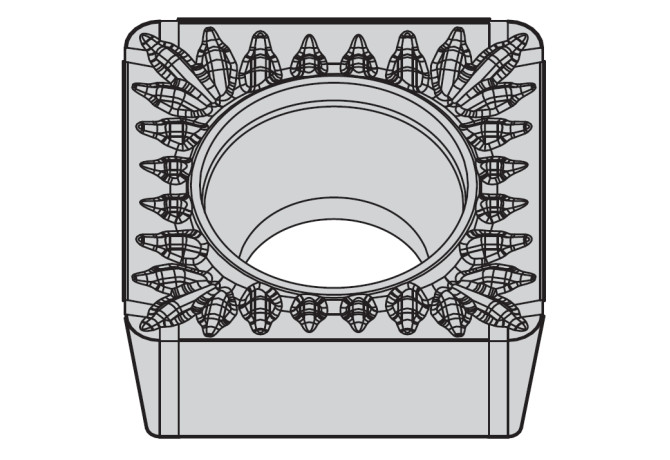

SCMT120408MP WM25CT

Артикул: SCMT120408MP WM25CT

В наличии

В корзину

Описание

Характеристики

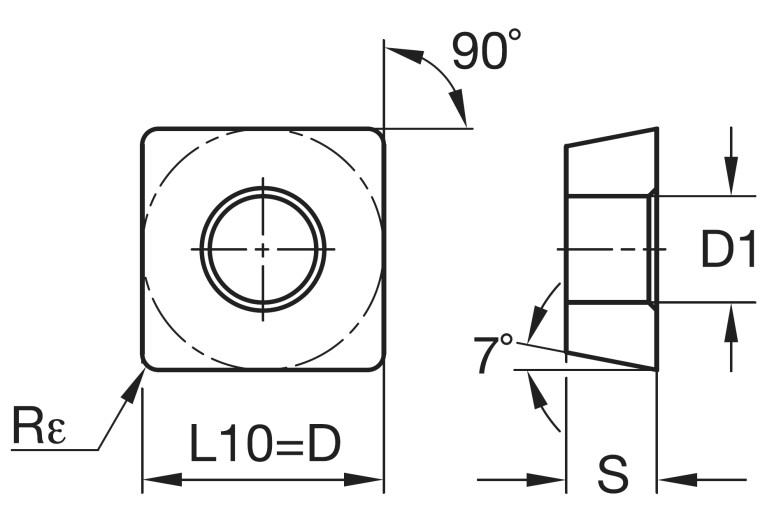

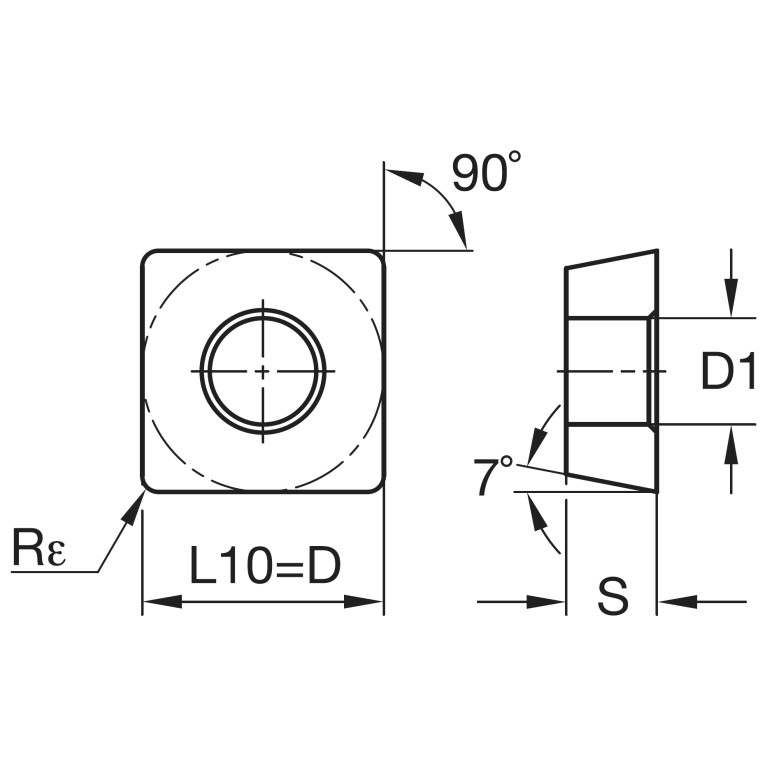

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COMPC Company code

WI - Widia

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

6/5/2012

DIN

SC1204083N

EPSR Insert included angle

90 Degree

FamilyProducts

indexable insert for turning, positive, SCMT-MP

GRDMFG Grade manufacturers designation

WM25CT

IC Inscribed circle diameter

12.7 mm

ID Identifying order number

SCMT120408MP WM25CT

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

J22 Product name

4168916

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SC1204083N

Materials

NameAnsi Product name inch alternative

SCMT432MP WM25CT

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SCMT120408

STDDESAnsi Standard designation ANSI

SCMT432

TCINS Tolerance class insert

Working process

No working processes available
