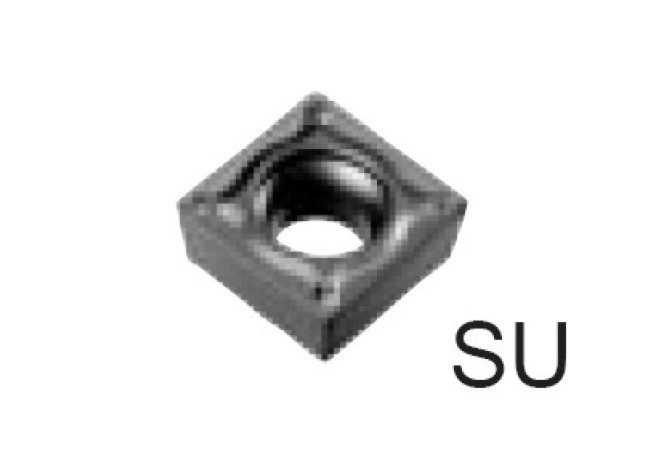

SCMT120404 NSU AC630M

Артикул: SCMT120404 NSU AC630M

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

NSU

CECC Cutting edge condition code

F - Sharpedged

COATN Coating / Покрытие

Al2O3

COMPC Company code

SU - Sumitomo

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

7/1/2021

DIN

SC1204 3N

EPSR Insert included angle

90 Degree

FamilyProducts

Sumitomo indexable insert for turning

GRDMFG Grade manufacturers designation

AC630M

IC Inscribed circle diameter

12.7 mm

ID Technical product number

SCMT120404 NSU AC630M

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SC1204 3N

Materials

Name Identifying order number

SCMT120404 NSU AC630M

RE Corner radius

0.4 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SCMT120404

STDDESAnsi Standard designation ANSI

SCMT431

TCINS Tolerance class insert

Working process

No working processes available
