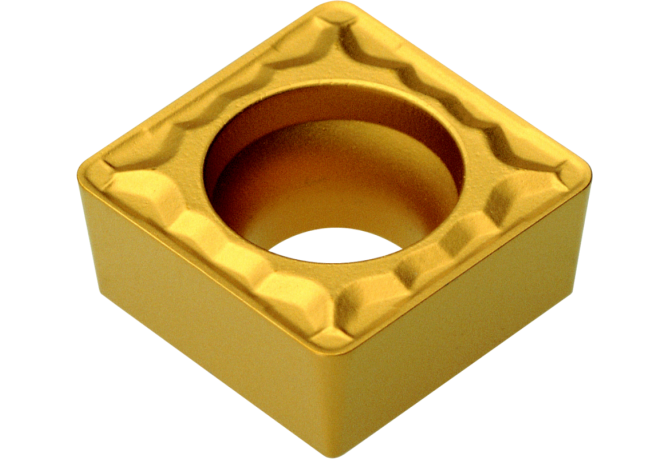

SCMT120404-HMP NC3030

Артикул: 1-02-025298

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

HMP

COATN Coating / Покрытие

Coated

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

6/4/2014

DIN

SC1204 3N

EPSR Insert included angle

90 Degree

FamilyProducts

Turning Insert (Positive)

GRDMFG Grade manufacturers designation

NC3030

GRDPRIO Standard designation of the grade main application

Carbide

IC Inscribed circle diameter

12.7 mm

ID Technical product number

1-02-025298

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SC1204 3N

Name Identifying order number

SCMT120404-HMP NC3030

RE Corner radius

0.4 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SCMT120404

STDDESAnsi Standard designation ANSI

SCMT431

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.0074 kg
