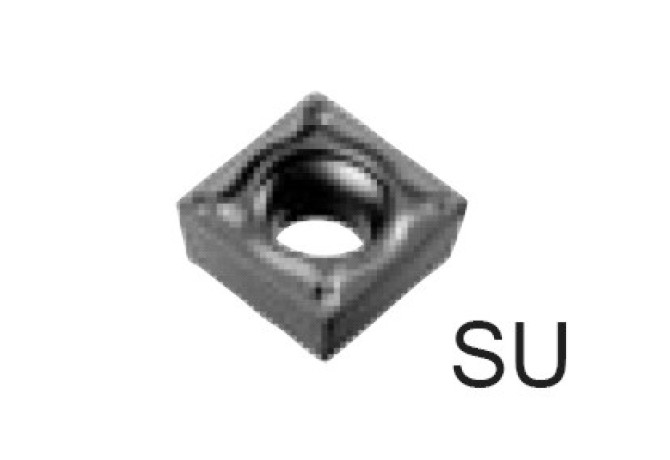

SCMT09T308 NSU AC610M

Артикул: SCMT09T308 NSU AC610M

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

NSU

CECC Cutting edge condition code

F - Sharpedged

COATN Coating / Покрытие

Al2O3

COMPC Company code

SU - Sumitomo

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

7/1/2021

DIN

SC09T3 3N

EPSR Insert included angle

90 Degree

FamilyProducts

Sumitomo indexable insert for turning

GRDMFG Grade manufacturers designation

AC610M

IC Inscribed circle diameter

9.525 mm

ID Technical product number

SCMT09T308 NSU AC610M

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

9.525 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SC09T3 3N

Materials

Name Identifying order number

SCMT09T308 NSU AC610M

RE Corner radius

0.8 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

SCMT09T308

STDDESAnsi Standard designation ANSI

SCMT32.52

TCINS Tolerance class insert

Working process

No working processes available
