Главная Каталог продукции Toolunited 16 201-02 - Square insert SCMT09T308 HTI10

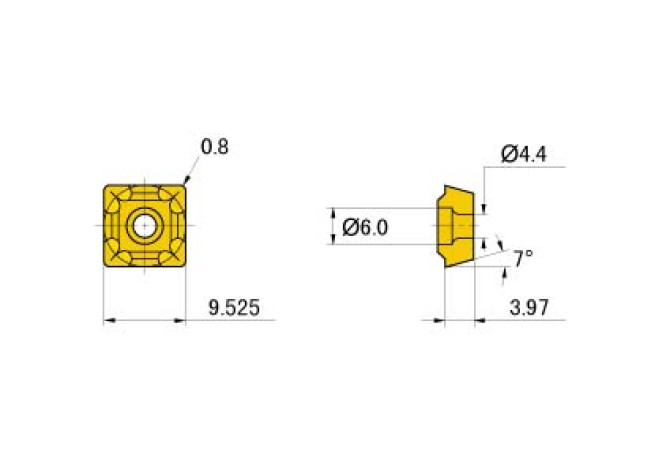

SCMT09T308 HTI10

Артикул: SCMT09T308 HTI10

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

BN Face land width

0.1 mm

CB Chip breaker face count

1 - With chip breaker one-side

CECC Cutting edge condition code

T - Chamfered

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

4/1/2022

DIN

SC09T3083N

EPSR Insert included angle

90 Degree

FamilyProducts

insert for turning SCMT

GAN Insert rake angle

18 Degree

GB Face land angle

18 Degree

GRDMFG Grade manufacturers designation

HTi10

GRDPRIO Standard designation of the grade main application

HW-K10

IC Inscribed circle diameter

9.525 mm

ID Technical product number

SCMT09T308 HTI10

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

9.52 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SC09T3083N

Materials

K,N,S,H

Name Identifying order number

SCMT09T308 HTI10

RE Corner radius

0.8 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

SCMT09T308

STDDESAnsi Standard designation ANSI

SCMT32.52

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning

WT Weight of item

0.046 kg
