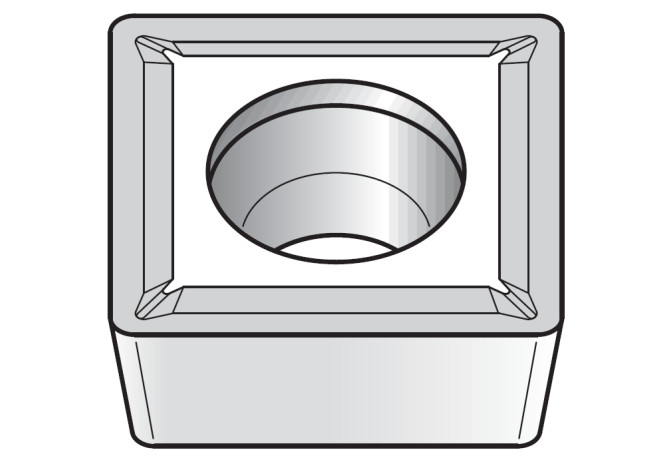

SCMT09T3041P TN15M

Артикул: 4166395

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COMPC Company code

WI - Widia

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

6/5/2012

DIN

SC09T3043N

EPSR Insert included angle

90 Degree

FamilyProducts

indexable insert for turning, positive, SCMT-1P

GRDMFG Grade manufacturers designation

TN15M

IC Inscribed circle diameter

9.53 mm

ID Technical product number

4166395

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

9.53 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SC09T3043N

Materials

Name Identifying order number

SCMT09T3041P TN15M

NameAnsi Identifying order number inch alternative

SCMT32511P TN15M

RE Corner radius

0.4 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

SCMT09T304

STDDESAnsi Standard designation ANSI

SCMT3251

TCINS Tolerance class insert

Working process

No working processes available
