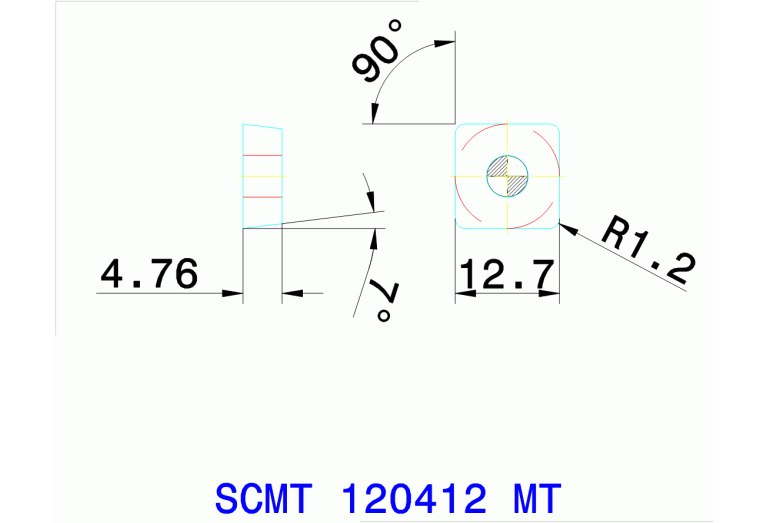

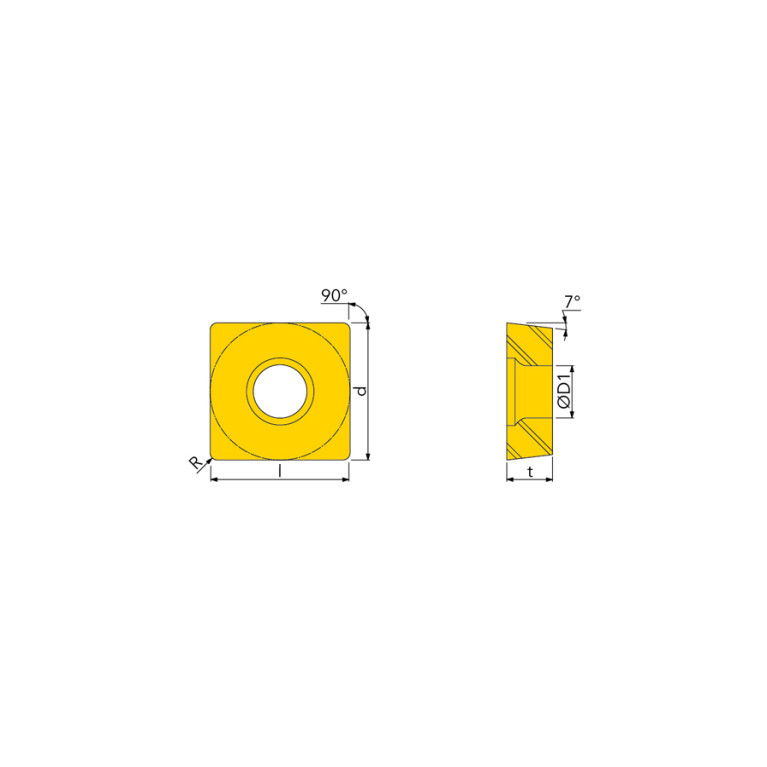

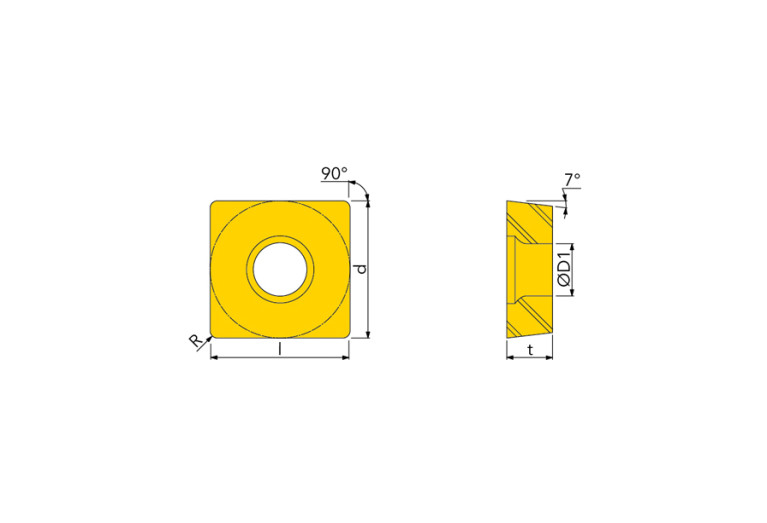

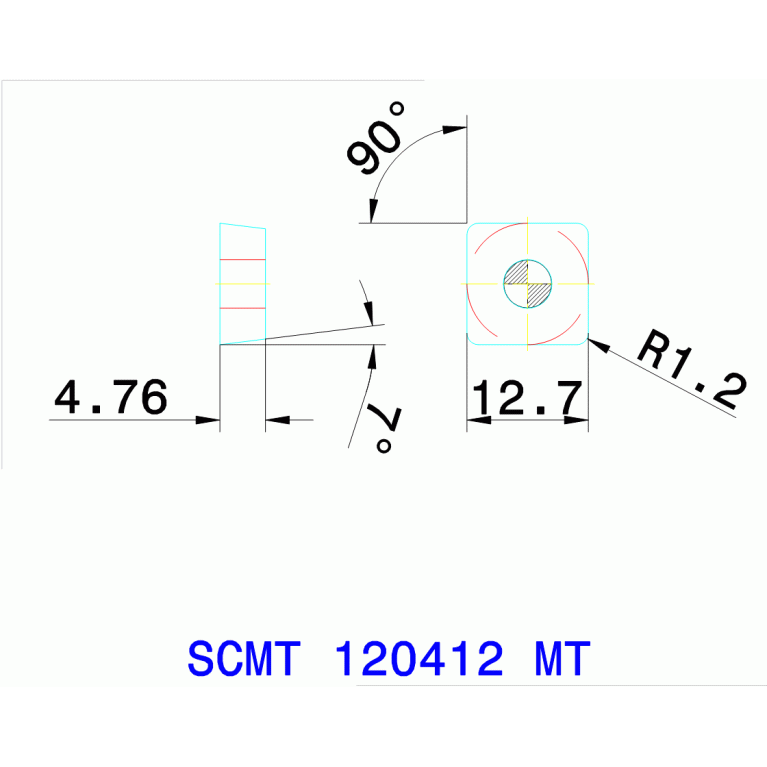

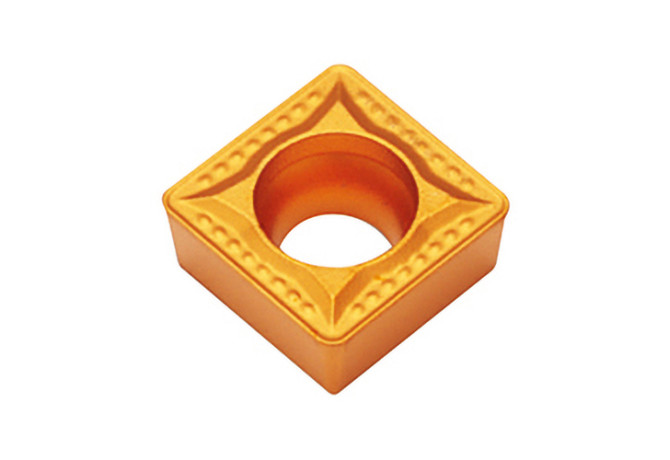

SCMT 120412 MT TT7015

Артикул: 5523703

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

5.5 mm

Delivery state

LL - Stock limited

DIN

SC1204123N

EPSR Insert included angle

90 Degree

FamilyProducts

insert, Chipbreaker, positive 7° clearance square inserts for medium machining

GRD2ND Standard designation of the grade 2nd application

K10-K25

GRDMFG Grade manufacturers designation

TT7015

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5523703

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

11.5 mm

LE Cutting edge effective length

2 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SC1204123N

MIID Master insert identification

SCMT120412 TT7015

Name Identifying order number

SCMT 120412 MT TT7015

RE Corner radius

1.2 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SCMT120412

STDDESAnsi Standard designation ANSI

SCMT433

TCINS Tolerance class insert

Working process

No working processes available
