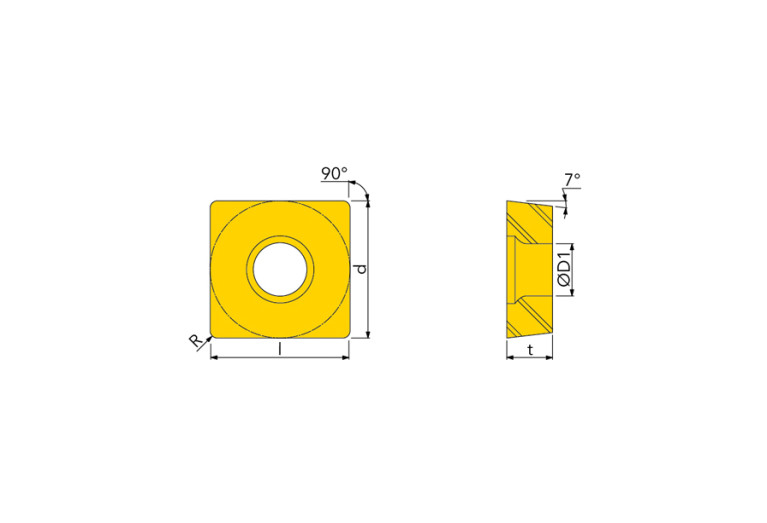

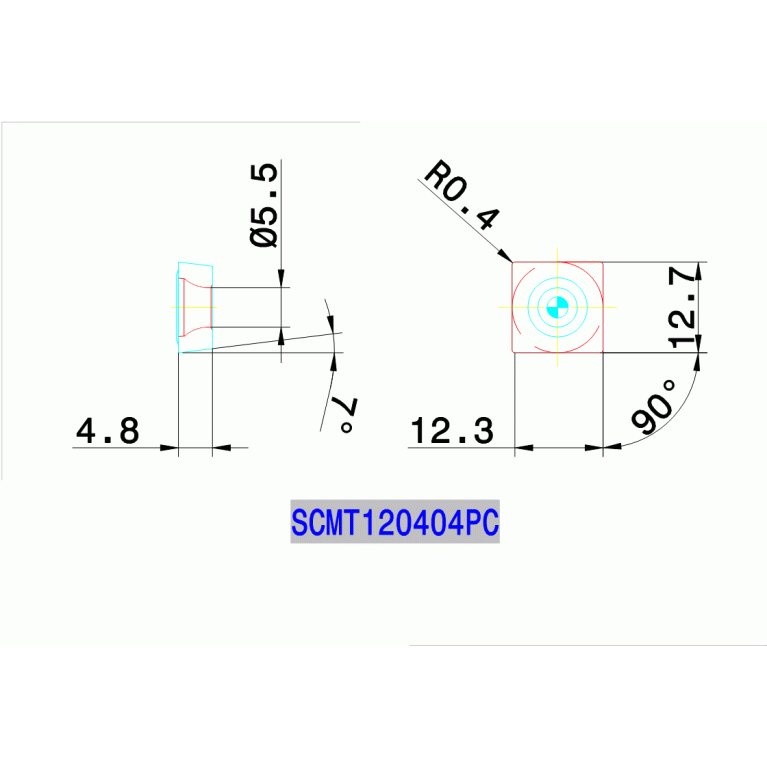

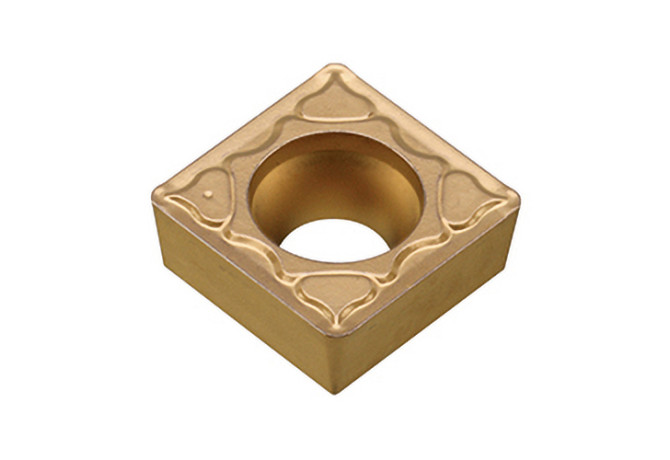

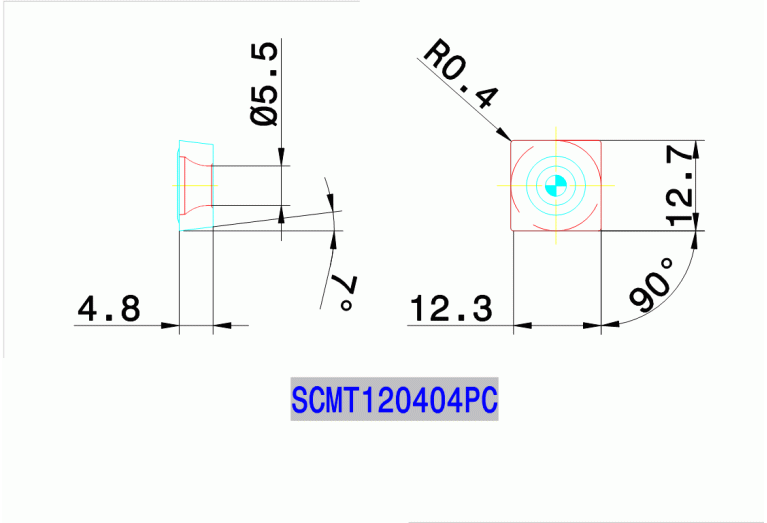

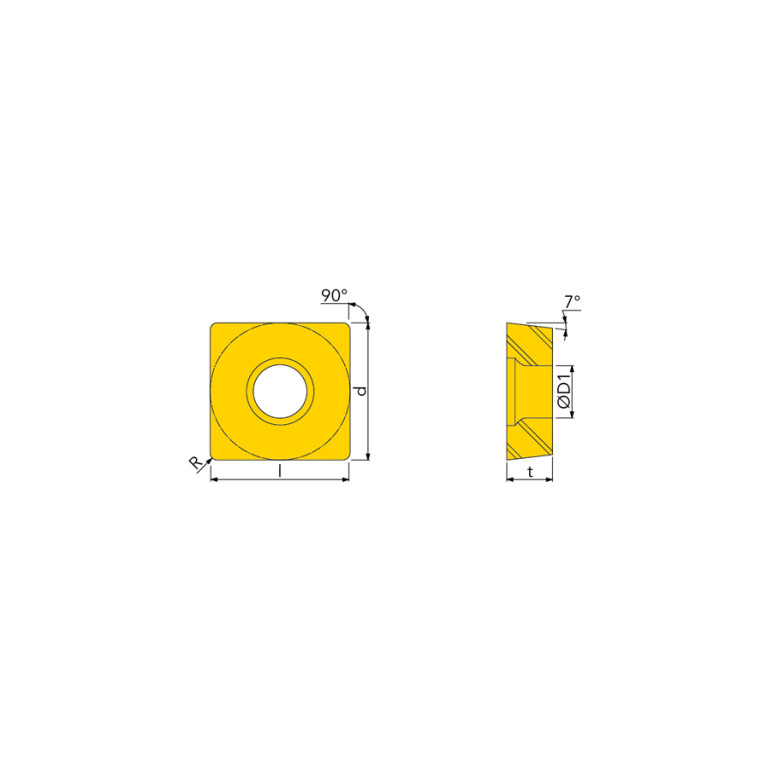

SCMT 120404 PC TT8125

Артикул: 5521461

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

5.5 mm

Delivery state

LL - Stock limited

DIN

SC1204043N

EPSR Insert included angle

90 Degree

FamilyProducts

insert, Positive 90° Insert - 7° clearance for medium roughing / steel

GRDMFG Grade manufacturers designation

TT8125

GRDPRIO Standard designation of the grade main application

P15-P30

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5521461

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.3 mm

LE Cutting edge effective length

2.2 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SC1204043N

MIID Master insert identification

SCMT120404 TT8125

Name Identifying order number

SCMT 120404 PC TT8125

RE Corner radius

0.4 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SCMT120404

STDDESAnsi Standard designation ANSI

SCMT431

TCINS Tolerance class insert

Working process

No working processes available
