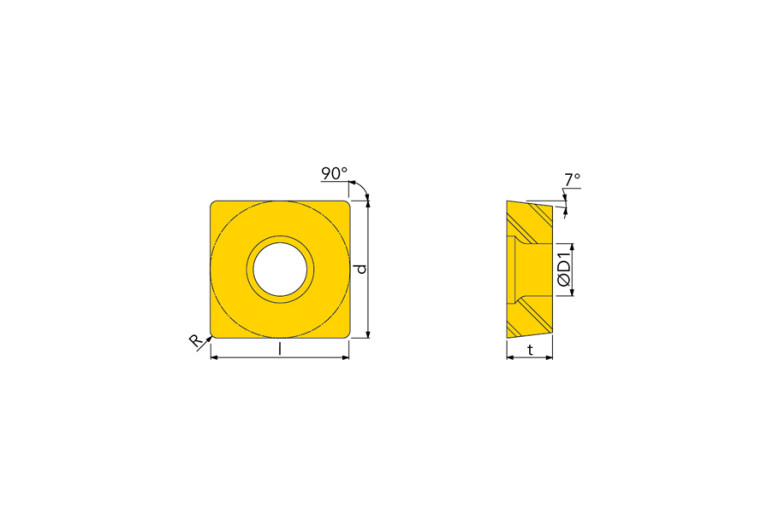

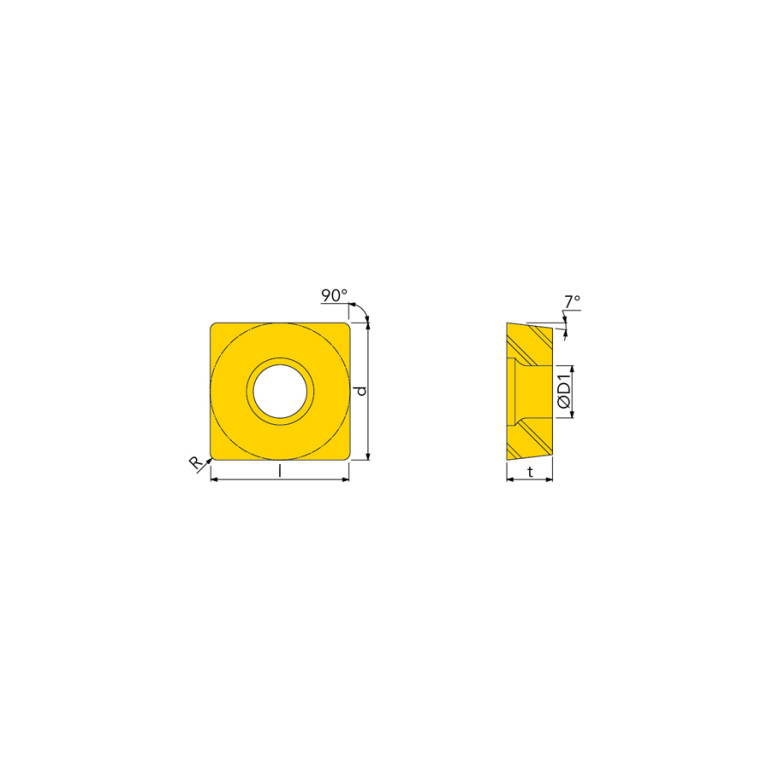

SCMT 120404 PC CT3000

Артикул: 5750071

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

5.5 mm

Delivery state

LL - Stock limited

DIN

SC1204043N

EPSR Insert included angle

90 Degree

FamilyProducts

insert, Positive 90° Insert - 7° clearance for medium roughing / steel

GRD2ND Standard designation of the grade 2nd application

M10-M20

GRD3RD Standard designation of the grade 3rd application

K10-K20

GRDMFG Grade manufacturers designation

CT3000

GRDPRIO Standard designation of the grade main application

P10-P20

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5750071

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.3 mm

LE Cutting edge effective length

2.2 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SC1204043N

MIID Master insert identification

SCMT120404 CT3000

Name Identifying order number

SCMT 120404 PC CT3000

RE Corner radius

0.4 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SCMT120404

STDDESAnsi Standard designation ANSI

SCMT431

TCINS Tolerance class insert

Working process

No working processes available
