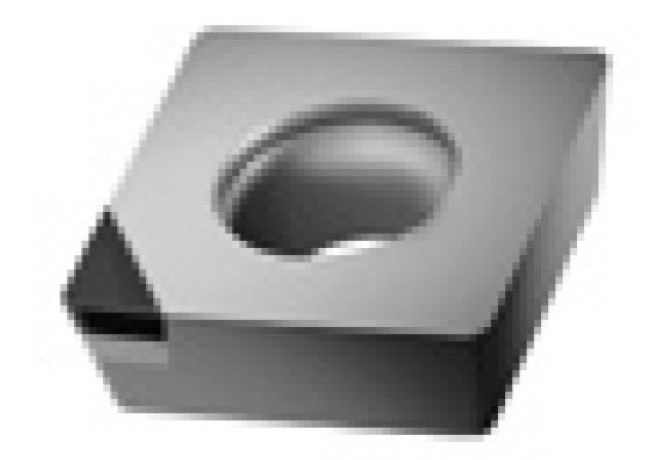

SCGW09T304F01X-0AA-PU620

SCGW09T304F01X-0AA-PU620 SCGW09T304F01X-0AA-PU620 SCGW09T304F01X-0AA-PU620

SCGW09T304F01X-0AA-PU620

Mapal
Артикул: 30025529
В наличии
В корзину
Описание
Характеристики

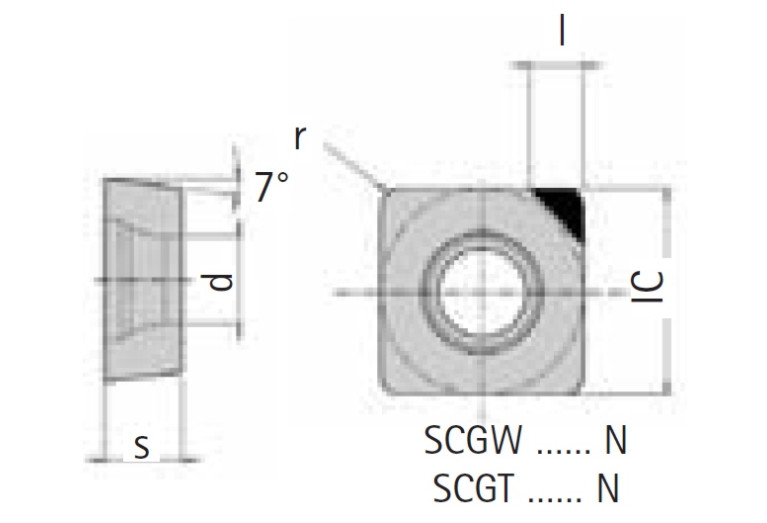

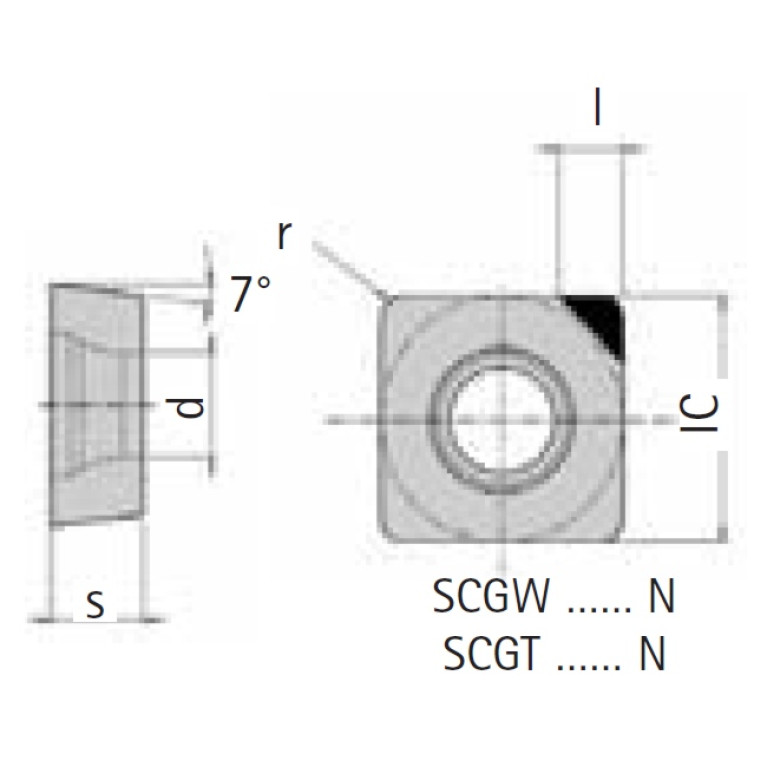

AN Clearance angle major
7 Degree
CB Chip breaker face count
0 - Without chip breaker
CBMD Chip breaker manufacturers designation
0AA
CECC Cutting edge condition code
F - Sharpedged
COMPC Company code
MP - Mapal
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
4.4 mm
Delivery state valid from
7/10/2012
DIN
SC09T3 3N
EPSR Insert included angle
90 Degree
FamilyProducts
MAPAL diamond insert
GAN Insert rake angle
0 Degree
GRDMFG Grade manufacturers designation
PU620
IC Inscribed circle diameter
9.525 mm
ID Technical product number
30025529
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
N - Neutral
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-02 - Square insert
L Cutting edge length
9.525 mm
LE Cutting edge effective length
9.1 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SC09T3 3N
Materials
P,N,H
Name Identifying order number
SCGW09T304F01X-0AA-PU620
RE Corner radius
0.4 mm
S Insert thickness
3.97 mm
S1 Insert thickness total
3.97 mm
STDDES Standard designation
SCGW09T304
STDDESAnsi Standard designation ANSI
SCGW32.51
TCE Tipped cutting edge code
A
TCINS Tolerance class insert
G
Working process
DDA - External turning,DDI - Internal turning
