Главная Каталог продукции Toolunited 16 201-02 - Square insert SCGW09T304F01N-0AA-PU620

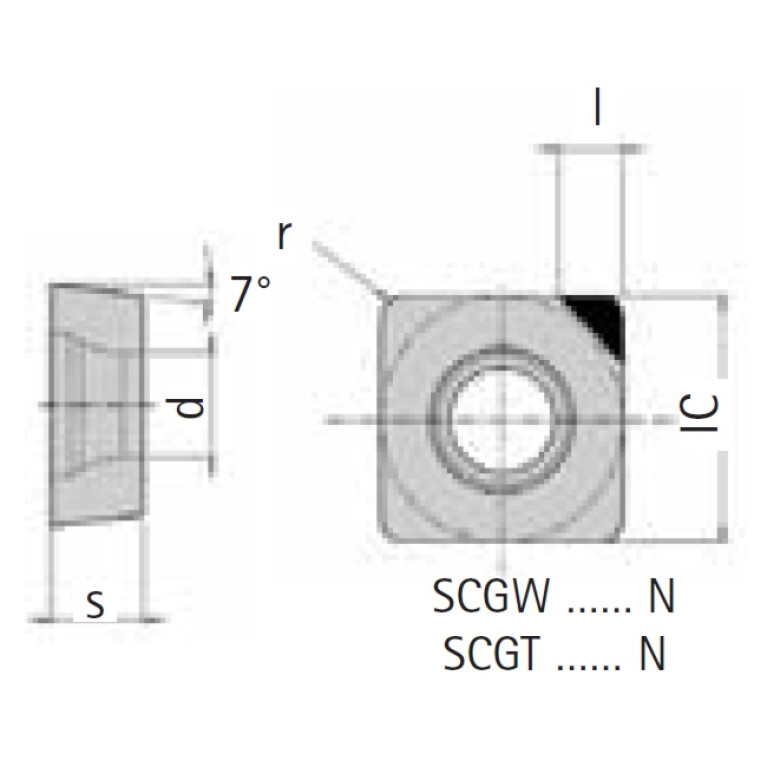

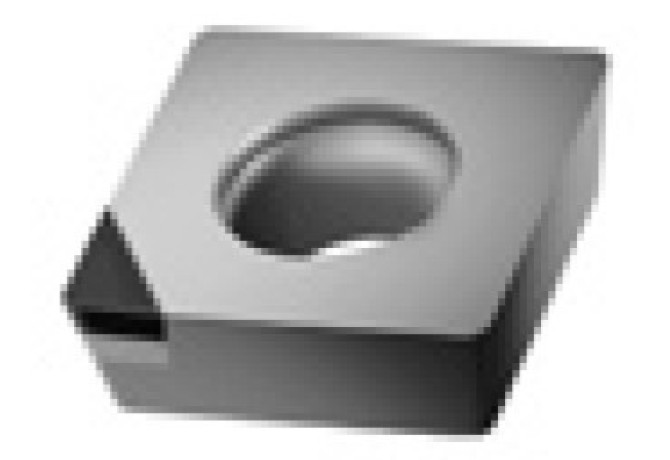

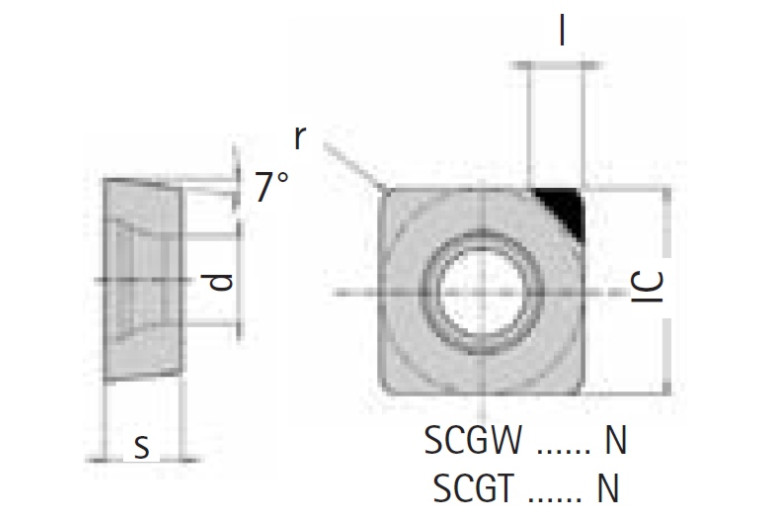

SCGW09T304F01N-0AA-PU620

SCGW09T304F01N-0AA-PU620 SCGW09T304F01N-0AA-PU620 SCGW09T304F01N-0AA-PU620

SCGW09T304F01N-0AA-PU620

Mapal
Артикул: 30011037
В наличии
В корзину
Описание
Характеристики
AN Clearance angle major
7 Degree
BS Wiper edge length
3 mm
CB Chip breaker face count
0 - Without chip breaker
CBMD Chip breaker manufacturers designation
0AA
CECC Cutting edge condition code
F - Sharpedged
COMPC Company code
MP - Mapal
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
4.4 mm
Delivery state valid from
10
DIN
SC09T3 3N
EPSR Insert included angle
90 Degree
FamilyProducts
MAPAL diamond insert
GAN Insert rake angle
0 Degree
GRDMFG Grade manufacturers designation
PU620
IC Inscribed circle diameter
9.525 mm
ID Technical product number
30011037
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
N - Neutral
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-02 - Square insert
L Cutting edge length
9.525 mm
LE Cutting edge effective length
3.1 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SC09T3 3N
Materials
P,N,H
Name Identifying order number
SCGW09T304F01N-0AA-PU620
RE Corner radius
0.4 mm
S Insert thickness
3.97 mm
S1 Insert thickness total
3.97 mm
STDDES Standard designation
SCGW09T304
STDDESAnsi Standard designation ANSI
SCGW32.51
TCE Tipped cutting edge code
A
TCINS Tolerance class insert
G
Working process
DDA - External turning,DDI - Internal turning
