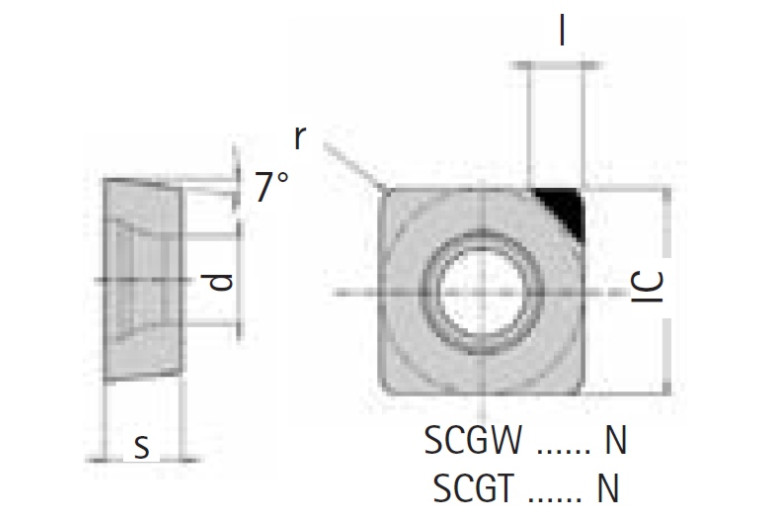

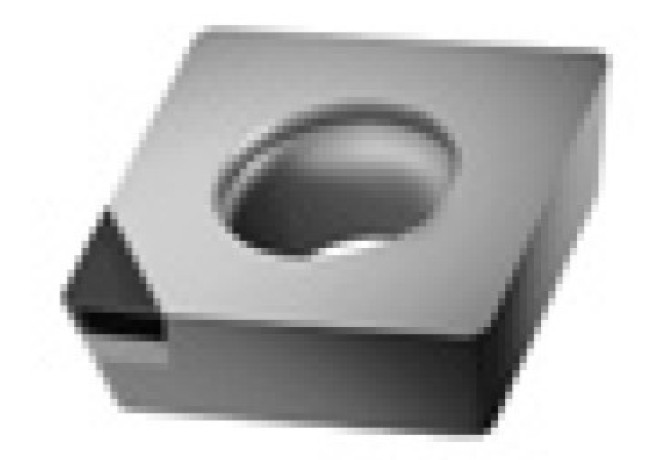

SCGW09T304E01N-0AA-FU720

SCGW09T304E01N-0AA-FU720 SCGW09T304E01N-0AA-FU720 SCGW09T304E01N-0AA-FU720

SCGW09T304E01N-0AA-FU720

Mapal
Артикул: SCGW09T304 E01 N-0AA-FU720
В наличии
В корзину
Описание
Характеристики
AN Clearance angle major
7 Degree
CB Chip breaker face count
0 - Without chip breaker
CBMD Chip breaker manufacturers designation
0AA
CECC Cutting edge condition code
E - Rounded
COMPC Company code
MP - Mapal
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
4.4 mm
Delivery state valid from
7/10/2012
DIN
SC09T3 3N
EPSR Insert included angle
90 Degree
FamilyProducts
indexable CBN insert SCGW type
FLSC Face land size code
01
GRDMFG Grade manufacturers designation
FU720
IC Inscribed circle diameter
9.525 mm
ID Technical product number
SCGW09T304 E01 N-0AA-FU720
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
N - Neutral
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-02 - Square insert
L Cutting edge length
9.525 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SC09T3 3N
Name Identifying order number
SCGW09T304E01N-0AA-FU720
RE Corner radius
0.4 mm
S Insert thickness
3.97 mm
S1 Insert thickness total
3.97 mm
STDDES Standard designation
SCGW09T304
STDDESAnsi Standard designation ANSI
SCGW32.51
TCE Tipped cutting edge code
A
TCINS Tolerance class insert
G
Working process
DDA - External turning,DDI - Internal turning
