SCGT120408N.HN PD70

Артикул: SCGT120408NHNPD70

В наличии

В корзину

Описание

Характеристики

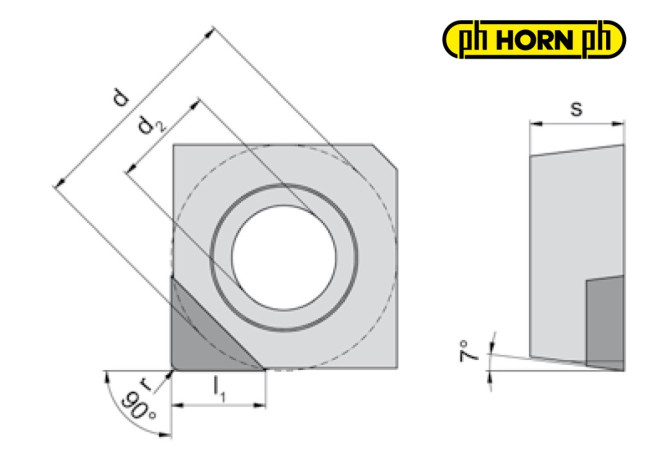

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

F - Sharpedged

COMPC Company code

HORN - Paul Horn

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

2/6/2015

DIN

SC1204083N

EPSR Insert included angle

90 Degree

FamilyProducts

SCGT Diamond tipped

GAN Insert rake angle

25 Degree

GRDMFG Grade manufacturers designation

PD70

IC Inscribed circle diameter

12.7 mm

ID Technical product number

SCGT120408NHNPD70

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LE Cutting edge effective length

3.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SC1204083N

Name Identifying order number

SCGT120408N.HN PD70

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SCGT120408

STDDESAnsi Standard designation ANSI

SCGT432

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning
